Name: Construction Machinery of Jaw Crusher Machine
Brand: shandong shanyuan
SKU: PE Series

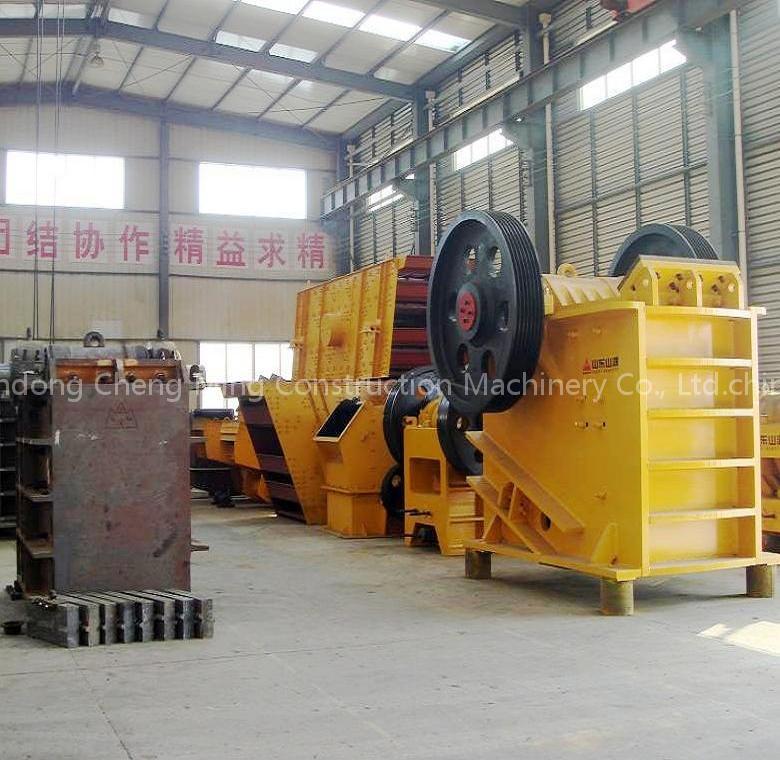

Construction machinery of jaw crusher machine
is a professional manufacturer in mining and construction machinery ,such as jaw crusher ,hammer crushe ,roller crusher ,impact crusher ,vibration feeder ,vibration screen, belt conveyors ,etc.

Characters of Jaw Crusher:

1. Feeding granularity is big; breaking ratio is big; Outturn is large.

2. The operation is stable and reliable, fixed with over-loading protective device.

3. The energy consumption is low, the wearing parts are little, and the maintenance cost is low.

4. The adjusting parts are reinforced emphatically and finish machining, reducing repair frequency.

5. The bearing parts adopts with multilayer labyrinth seal, prolonging its operation life.

6. Using modules lubrication, which is easier and more convenient for the maintenance.

7. The belt pulley adopts new locking craft, keyless connection, making maintenance more convenient.

Applicability:

1. Widely applied to all sorts of ore, rock, etc., the breaking compressive strength not exceeding 320Mpa.

2. Being widely used in mine, metallurgy, roads&bridges, building materials, water conservancy and chemical industry etc.

Jaw Crusher Specifications:

MODEL	Max. Feed Size (mm)	Discharge Size(mm)	Capacity (t/h)	Motor power (KW)
PE-400X600	≤340	40-90	15-40	30
PE-500X750	≤420	50-100	20-52	55
PE-500X750II	≤480	50-110	20-80	55
PE-600X900	≤520	65-130	50-150	75
PE-700X1000	≤600	70-140	80-170	90
PE-750X1060	≤630	80-140	100-180	110
PE-800X1100	≤700	100-200	120-230	110
PE-900X1100	≤800	100-200	130-250	132
PE-900X1200	≤800	100-230	180-280	132
PE-1000X1200	≤900	140-250	200-400	132
PE-1100X1300	≤1000	170-280	300-600	160
PE-1200X1500	≤1100	180-300	400-800	160
