.Constant Current LED Power Repeater
Specifications
- Brand
- Bincolor
- Origin
- China (Mainland)
- Price Term
- FOB
.Constant Current LED Power Repeater is a Dimmers product. Key specs — Brand: Bincolor; Origin: China (Mainland); Price Term: FOB.
Product Description
The constant voltage power repeater and constant current power repeaters can be connected together, which is convenient for controlling LEDs with different voltage and power.
BC-960Constant Voltage Power Repeater
Product Parameter
Model | BC-960 |
Input voltage | DC12V-DC24V |
Max load current | 6A/CH×3 |
Max output power | 220W(12V)450W(24V) |
Output signal | CV PWM |
Product Dimension | L121xW39xH39(mm) |
Weight (G.W) | 100g |

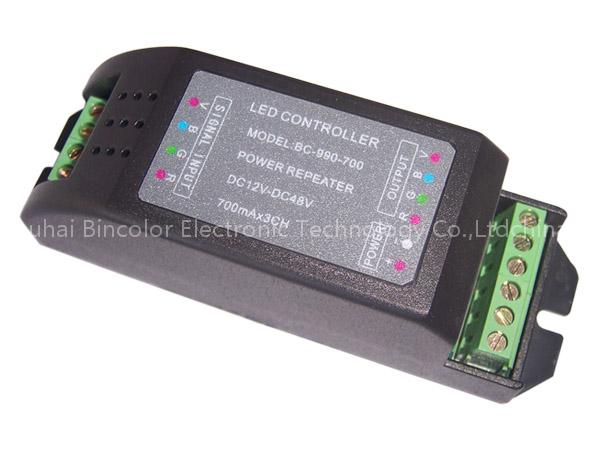

BC-990 Constant Current Power repeater Product Parameter
Model | BC-990-350 | BC-990-700 |
Input voltage | DC12V-DC48V | DC12V-DC48V |
Max load current | 350MA/CH×3 | 700MA/CH×3 |
Driving LEDs | 1-12pcs 1W LEDs | 1-12pcs 3W LEDs |
Output signal | CC PWM | CC PWM |
Product Dimension | L121xW39xH39(mm) | L121xW39xH39(mm) |
Weight (G.W) | 100g | 100g |
Please contact us for more details!
