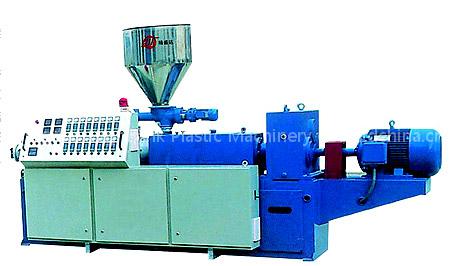

Conical Twin-screw Extruder
Specifications
- Brand
- Highbank
- Origin
- China (Mainland)
Quick answer
Conical Twin-screw Extruder is a Other Plastic & Rubber Machinery product. Key specs — Brand: Highbank; Origin: China (Mainland).
Product Description
SJSZ Series Conical Twin-screw Extruder
Main Technical Standards
| SPECIFICA\MODE | SJSZ-45 | SJSZ-50 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Diameter of screws(mm) | 45/90 | 50/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| L/D | 14.5 | 14.5 | 14.5 | 14.6 | 15.25 | 17.86 |
| Speed of screws | 3-34 | 3-37 | 3-37 | 3.9-39 | 3.9-39 | 4-0 |
| Main motor(kw) | 18.5 | 22 | 27 | 37 | 55 | 100 |
| Barrel heating power(kw) | 15 | 10 | 18 | 28 | 38 | 70 |
| Production(kg/h) | 100 | 120 | 150 | 260 | 400 | 800 |
| Centre height of machine(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1100 |
| Net weight(kg) | 3000 | 3200 | 3500 | 4000 | 5000 | 7000 |
