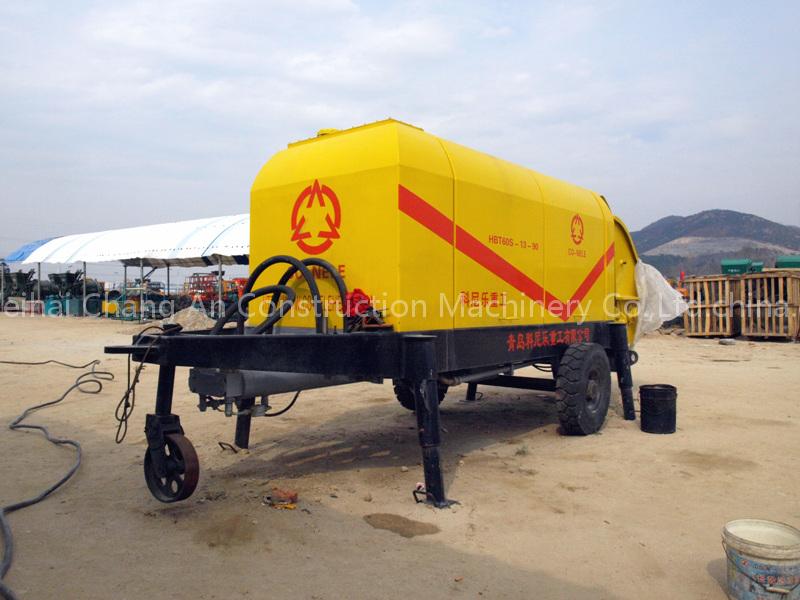

Concrete pump is a Pumps & Parts product. Key specs — Brand: Lu Gong,XCMG,Fangyuan; Origin: China.
Product Description
Project S valve pump HBTS60-9\ HBTS60-13\ HBTS60-16\ HBT80S-13 \HBT80S-16 Concrete theory of low-voltage transmission m3 / h :60 \60 \60\ 80 \80 High-pressure m3 / h :36 \36 \35\ 47 \46 Concrete Theory Low-voltage transmission pressure (Mpa): 5.7 \7.6 \9.6 \7.6 \9.6 High-pressure (Mpa ):9\ 12.5 \15.7\ 12.5\ 15.7 Hydraulic system pressure( Mpa )26\ 32 \32\ 32 \32 Motor speed (r / min ):1480 German imports of the main oil pump original story Kawasaki, Japan The main oil bore( mm): 125/80x1650 125/80x1650 140/90x1650 125/80x1650 (1800) 125/90x1650 (1800) Transportation cylinder diameter (mm) :200 Electric power (Kw ):75\ 90\ 110 \110 \130 Hydraulic fuel tank volume (L): 500 \500 \500\ 500 \500 Hopper volume (m3 ):0.6 Voltage( V): 380AC Weight (kg ):5000 \5000\ 5200 \5200\ 5500 The largest pumping from the vertical height (m ):150m\ 180m \250m \180m \250m Horizontal distance( m ):600\700 \1000 \700 \1000
