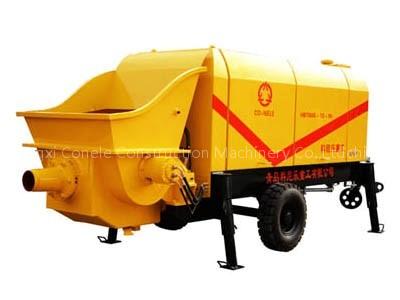

Concrete pump is a Pumps & Parts product. Key specs — Brand: Co-nele; Origin: China; Price Term: FOB.
Product Description
2.Motor / diesel engine concrete pumps
3.Original binding REXROTH/HAWE from Germany, Kawasaki
Our company, based on the mature manufacture of electrical control reversing concrete pump and through many years’ efforts, has developed fully hydraulic control concrete pump with outstanding performances.
The hydraulic system has greatly improved the reliability of the whole machine to guarantee safety of the machine under tough condition. Our company mainly produces all kinds of motor / diesel engine concrete pumps with the delivery capacity 15-120m2/h and delivery pressure 5-20Mpa. And we have two series concrete pump: They are
Item | Unit | S valve pump | |||||
HBT60S-9 | HBT60S-9 | HBT60S-16 | HBT68S-13 | ||||
Theoretical delivery volume | Low pressure | m3/h | 60 | 60 | 60 | 80 | |
High pressure | m3/h | 36 | 36 | 35 | 47 | ||
Theoretical delivery pressure | Low pressure | Mpa | 5.7 | 5.7 | 9.6 | 7.6 | |
High pressure | Mpa | 9 | 12.5 | 15.7 | 12.5 | ||
Hydraulic pressure | Mpa | 26 | 32 | 32 | 32 | ||
Motor speed | r/min | 1480 | |||||
Main oil pump | Original binding REXROTH/HAWE from Germany, Kawasaki from Japan | ||||||
Duct dia./pole dia./journey | mm | 125/80×650 | 125/80×650 | 140/90×650 | 125/80×650 | ||
Conveyor oil container diameter | mm | 200 | |||||
Motor power | Kw | 75 | 90 | 110 | 110 | ||
Hydraulic oil container capacity | L | 500 | 500 | 500 | 500 | ||
Hopper capacity | m3 | 0.6 | |||||
Working voltage | V | 380AC | 380AC | 380AC | 380AC | ||
Weight | Kg | 5000 | 5000 | 5200 | 5200 | ||
Max. delivery distance | Vertical height | m | 150 | 180 | 250 | 180 | |
Horizontal distance | m | 600 | 7 | 1000 | 700 | ||
