Concrete Mixer
Specifications
- Brand
- Lu Gong,XCMG,Fangyuan
- Origin
- China
Concrete Mixer is a Faucets, Mixers & Taps product. Key specs — Brand: Lu Gong,XCMG,Fangyuan; Origin: China.
Product Description
Concrete Mixer Introduction:

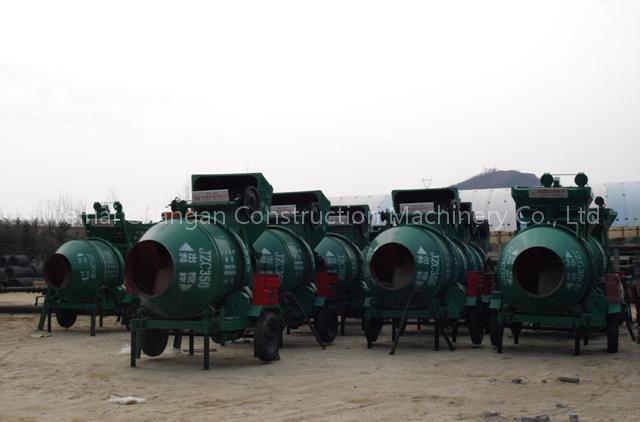

1)Model:JZC350
2)Materials:Steel
3)Size:JZC350
4)JZC350 concrete mixer is a kind of self-fall bipyramid reversal discharging mixer machine; the drum is driven with the gear; during working, It is mixing in positive rotation and discharging in reversal revolution. It can mix the plastic and half-dry hard mixer is designed and manufacturesd as GB/T9142-2000《Concrete mixer》.It has reasonable instructureã€high production efficiencyã€good mixing quality and beautiful is a kind of advanced model.
5)Technical parameters of the Concrete Mixer:
| Item | Parameter | |
Charging volume (L) | 560L | |
Discharging volume (L) | 350L | |
Productivity | 10-14mm3/h | |
Rev of drum | 14r/min | |
Max size of aggregate | 60mm | |
Water-supply error | ≤ 2% | |
Discharge height | 1250mm | |
Mixer electromotor | Type | Y132S-4 |
Power | 5.5kW | |
Water pump electromotor | Type | 40JDB-12 |
Power | 0.55kW | |
Outline dimension （ L×W×H） | 4010×2140×3340mm | |
Weight | 1550kg | |
