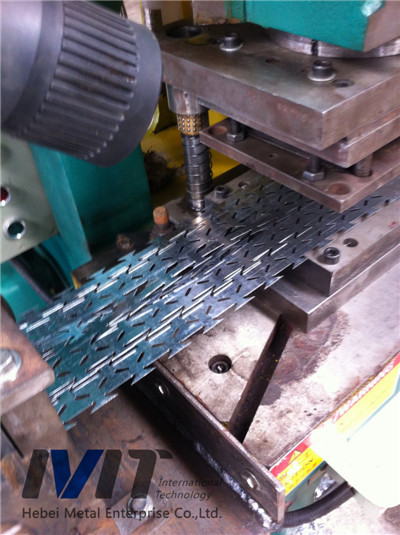

Concertina Razor Barbed Wire Machine

FOB Price: US $ 18,000 - 22,000 / Set Min.Order Quantity: 1 Set/Sets as request Supply Ability: 10 Set/Sets per Month as request Port: xingang Payment Terms: L/C,D/P,T/T,Western Union Place of Origin: Hebei, China (Mainland) Brand Name: MT Model Number: MT-RM-22 After-sales Service Provided: Engineers available to service machinery overseas application: making razor barbed fence QC: ISO & CE Mould: BTO-22,30,CBT-65 Trips: 3,5,7,9 Output: 60-100 kgs/hours Material: hot dipped galvanized wire and plate Packaging Details: nude package or as your requirements Delivery Detail: 10 days after we receive your pre-payment Razor barbed wire machine with one strip is lightstyle,easy to operate ,convinent to maintain, competitive price.

It is mainly consists of main machine which can produce the strip plate and coiling machine  which can coil the wire into the strip plate.

Application:Widely used in animal breeding,agriculture,forestry protection,park fence,stadium , airport and prison etc.  Main machine technical parameters: Razor Wire Machine Type 5 strip 9 strip Overal Diamension L*W*H (mm) 1100X1000X1700 1200X1000X1900 Rated Voltage 380V 380V Power 1.5KW 2.2KW Producing speed 220-280m/h 220-280m/h Weight  800KG  1500KG

Colling machine technical parameters: Rolling machine: Overal Diamension  L*W*H1100mmx750mmx1200mm  Rated Voltage 380V Power 1.5kw Producing speed 80kg/h Weight 300kg
