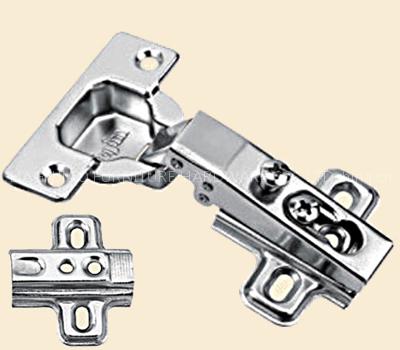

Concealed hinge, one-action Model-E
Listing ID#10058461
ModelE
CategoryDoor & Window Bolts
Door & Window Bolts

Concealed hinge, one-action Model-E

Specifications

Brand
JIAJIN
Origin
SHUNDE, FOSHEN, GUANGDONG, CHINA
Request Quote
Quick answer

Concealed hinge, one-action Model-E is a Door & Window Bolts product. Key specs — Brand: JIAJIN; Origin: SHUNDE, FOSHEN, GUANGDONG, CHINA.

Product Description

Model-EE011 Full overlay/ E012 Half overlay/ E010 InsetConcealed hinge, one-actionMaterial: steel with nicked platingMax door opening angle: 105°Cup diameter: 35mmCup drilling depth: 11.3mmHole pitch: 48mmWith spring, Self-closing3 dimensional adjustments: side, depth and heightVariable side adjustment +2 mm / -2mmVariable depth adjustment +2 mm / -2 mm
