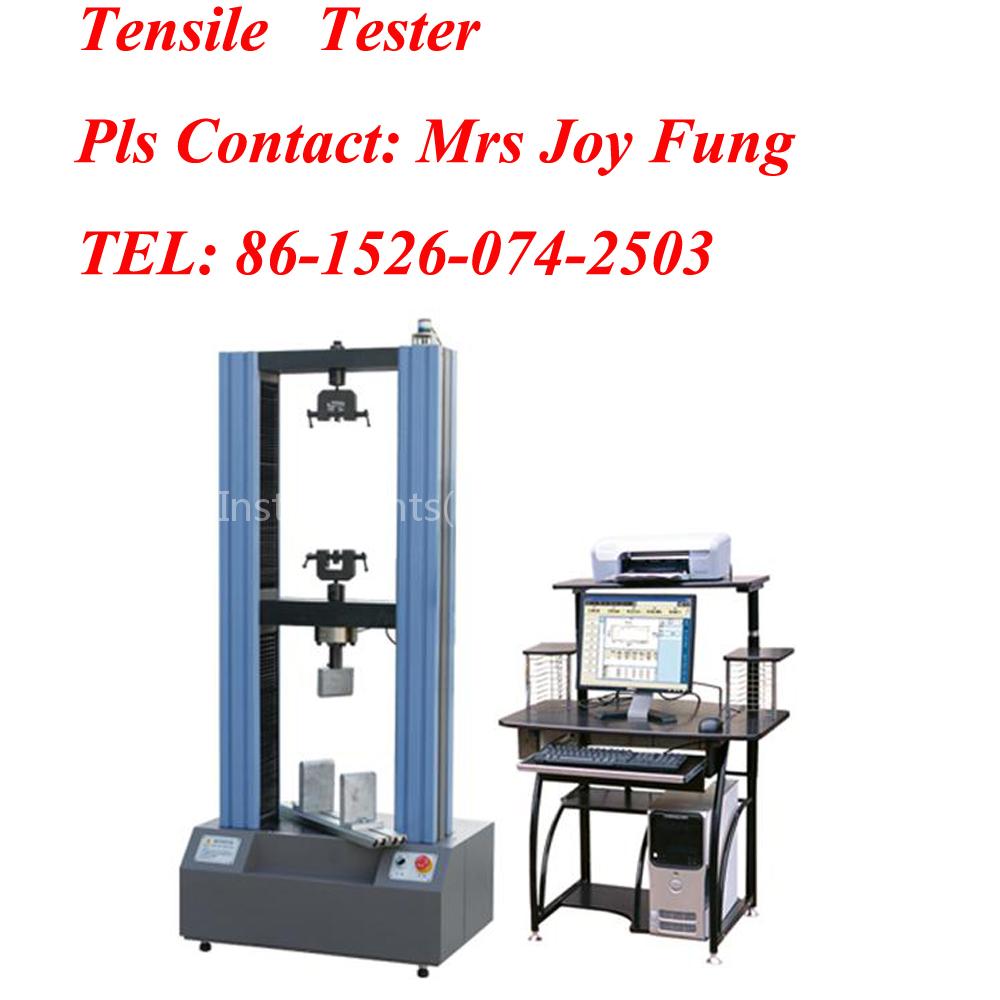

Name: Computer Controlled Univesal Tensile Tester
SKU: TST-C1003

Testing machine, tester, testing equiment, electronic instrument

Specification

Computerized strength tester is used to test different kinds of metal materials (steel wire, nets, pipe, etc), timber, artificial board and facing man-made board according to different Physical-chemical properties. It meets the standard requirements and does inside combinative strength test, surface combinative strength test, surface agglutination strength test, agglutination strength test, Static curve strength test, elastic modulus test, screw force test and so on.

It is the ideal testing equipment for different levels of quality inspection departments and manufacturers to produce wood and artificial board and can provide accurate test results. This machine is controlled by digital controller of computer system, Motor rotation is controlled by speed adjustment system, then complete sample’s various Mechanical testing by speed slower system carry out the up and down action of movable crossbeam through precise reduction system to slow it down.

Technical Parameter

Max test power	30kN
Test power range	0.4%-100%
Test power indicated value precision	Superior of indicated value±1%
Test power resolution	1/300000 no divided class or in six classes
Beam displacement measurement accuracy	Resolution is higher than 0.0025mm
Deformation measurement precision	±0.05%(0.2-10mm)
test speed range	0.01-500mm/min, no-stage timing
Speed controlled precision	±1%(0.01-10mm/min); ±0.5%(10-500mm/min)
Constant, Permanent deformation, Constant displacement control range	0.2%-100%FS
constant, Permanent deformation, Constant displacement control precision	Setting value< 10%FS, within±1%, ≥10%FS, within±1%
Deformation rate control precision	Speed rate<0.05%FS, within±2.0% in setting value. ≥0.05%FS, within 0.5% in setting value.
Test space	Tensile space:600mm Compression space: 700mm width:400mm
Fixture	inside combinative strength test Fixture, surface combinative strength test Fixture, surface agglutination strength test Fixture, agglutination strength test Fixture, Static curve strength test Fixture, elastic modulus test Fixture, screw force test Fixture, 7 fixtures in total
Machine power	Single phase,220v±10%,50hz,. Power: 2KW
Working environment	Inside temperature—35°C, Relative Humidity not more than 80%
dimensions(W×D×H)-Main Unit	760×510×1800mm (W×D×H)
Weight	Standard type: 260Kg

Remark

This type of Tenslile Tester is used to test the pulling, bursting, pressing, shearing testing item of different kinds of materials. If required, we can install or unistall the computer for you.
