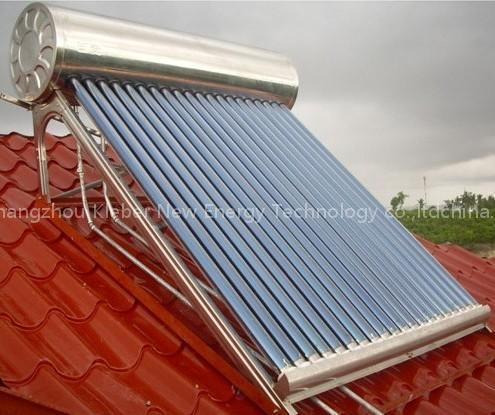

Compact Solar Water Heater (SS-SS)
Specifications
- Brand
- KLEBER or OEM
- Origin
- Changzhou
Compact Solar Water Heater (SS-SS) is a Water Heaters product. Key specs — Brand: KLEBER or OEM; Origin: Changzhou.
Product Description
Model: (SS-SS)
Introduction of solar water heater:
1. TANK
Outer tank material: Stainless steel Plate thickness 0.31mm;
Inner tank material: SUS304-2B food grade stainless steel plate thickness 0.31mm;
Heat preservation: 72 Hr;
Insulation layer: High density polyurethane foam thickness 55mm;
Holes: 4 holes, water inlet and outlet, electrical heater, vent.
2. Triple Solar Vacuum tube
Model: 47mm*1500mm, 58mm*1800mm, 58mm*2100mm;
Double layer concentric borosilicate tempered 3.3 glass tube.
3. Bracket(Supporting frame)
Angle: 45 degree;
Material: SUS202 stainless steel (square pipe).
Assitant water tank, electrical heating element, controller, reflector is optional.
| MODEL | Absorption Area ( m2 ) | Vacuum Tube | Capacity (L) | Loading quantity | ||
| Diameter | Length | No. | 20’GP / 40’GP / 40’HQ | |||
| 470-1800/58-15 | 3.00 | 58mm | 1800mm | 15 | 150 | 44/93/112 |
| 470-1800/58-18 | 3.40 | 58mm | 1800mm | 18 | 180 | 40/85/102 |
| 470-1800/58-20 | 3.70 | 58mm | 1800mm | 20 | 200 | 36/76/91 |
| 470-1800/58-24 | 4.50 | 58mm | 1800mm | 24 | 240 | 32/61/81 |
| 470-1800/58-30 | 5.60 | 58mm | 1800mm | 30 | 300 | 25/53/63 |
