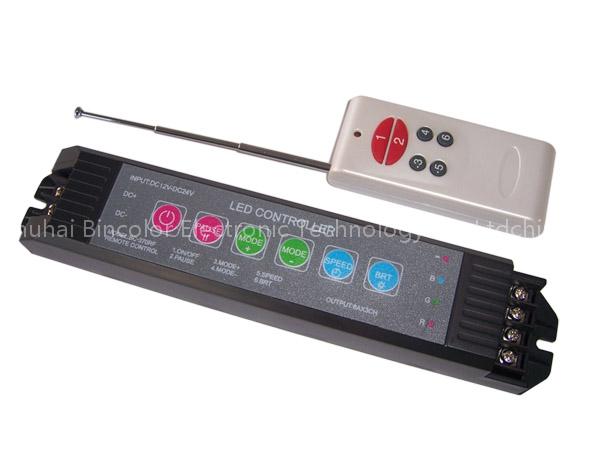

Common Cathode Multi-Function LED Controller
Specifications
- Brand
- Bincolor
- Origin
- Zhuhai, China
- Price Term
- FOB
Common Cathode Multi-Function LED Controller is a Dimmers product. Key specs — Brand: Bincolor; Origin: Zhuhai, China; Price Term: FOB.
Product Description
Model | BC-360 | BC-360RF |
Input voltage | DC12V-DC24V | DC12V-DC24V |
Max current load | 6A/CH×3 | 6A/CH×3 |
Max output power | 220W(12V)450W(24V) | 220W(12V)450W(24V) |
Scale levels | 256 level/CH×3 | 256 level/CH×3 |
Product Dimension | L21xW40xH30(mm) | L211xW40xH30(mm) |
Weight (G.W) | 180g | 210g |
Remote control distance | No | 50m with obstacles:100m without obstacles |
Control type | common anode | common anode |
Model | BC-370 | BC-370RF |
Input voltage | DC12V-DC24V | DC12V-DC24V |
Max current load | 6A/CH×3 | 6A/CH×3 |
Max output power | 220W(12V)450W(24V) | 220W(12V)450W(24V) |
Scale levels | 256 level/CH×3 | 256 level/CH×3 |
Product Dimension | L211xW40xH30(mm) | L211xW40xH30(mm) |
Weight (G.W) | 180g | 210g |
Remote control distance | No | 50m with obstacles:100m without obstacles |
Control type | Common cathode | Common cathode |
Please contact us for more details!
