Welding manipulator is composed of column, welding arm, elevating mechanism, boom expansion mechanism, cross trimming, and electrical box. It can satisfy multidirectional welding requirements. The elevating of welding arm adopted the way of worm gear transmission and chain drive elevating, its speed changed by converter which has stable transmission and slow and stable speed change. Cross trimming mechanism is used to adjust the deviation between wire and workpiece. The electrical control box is used to control power on/off, elevating and expansion of boom. In order to be more convenient, theres also a remote control box which have boom speed adjust potentiometer, boom elevating and expansion switch. And the control box of welder can install on electrical control box, on the panel have welding current meter, voltage meter, voltage potentiometer, current potentiometer, feeding, back, button, welding start and stop.

This welding center can use the control method of triplicates. The submerged arc welding, welding rotator and welding manipulator gang control, the manual control box can remote control to operating.

Model	Boom				Column		Traveling cart		Power	Tip Load
Model	(A) Vertical expansion	(B) Horizontal expansion	Elevation speed (m/min)	Max load at extremity (kg)	Rotation angleÂ Â Â Â (Â±180Âº)	(C) Total height (mm)	(D)*(E) Dimensions (mm)	(F) Rail c to c (mm)	KW	Kgs
HJ1515	1.5	1.5	0.3	100	manual	2930	1400*1350	1052	0.91	100
HJ2020	2.0	2.0	0.3	100	manual	3430	1400*1350	1052	0.91	100
HJ3030	3.0	3.0	1.0	200	motorized	5350	2400*1700	1400	2.75	200
HJ4040	4.0	4.0	1.0	200	motorized	6350	2400*1700	1400	2.75	200
HJ5050	5.0	5.0	0.9	200	motorized	7800	2400*2100	1798	3.35

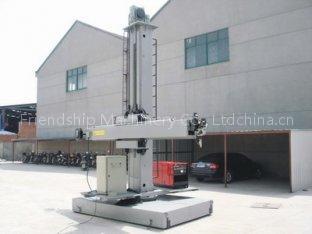

Column and boom
