Coefficient of Friction Tester
Specifications
- Origin
- China
- Packaging
- plywood
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,
Coefficient of Friction Tester is a Packaging Machines product. Key specs — Origin: China; Packaging: plywood; Price Term: EXW/EX-Work,FOB; Payment Term: T/T,L/C,.
Product Description

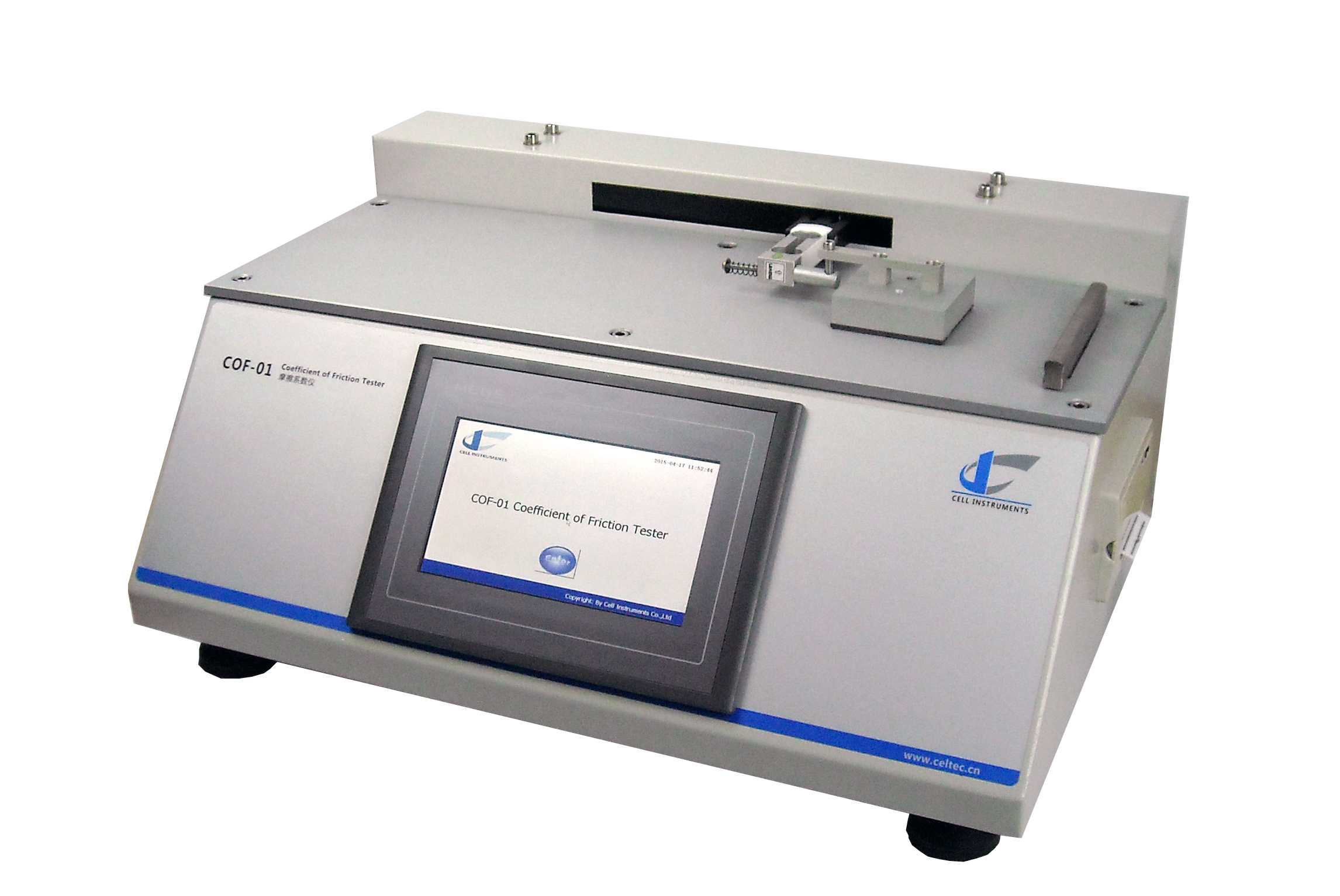

Coefficient of Friction Tester COF-01 is for the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires.
By measuring the smoothness of a product, the fastest running speed of packaging line can be realized.
Coefficient of Friction Tester Features 1. PLC control and touch screen operation 2. Real time display of test data, results and curves 3. Both the static and kinetic coefficient of friction can be measured 4. In accordance with multiple international standards 5. Test results calculation, analysis and curve superposition 6. RS232 output and professional software 7. Microprint of easy printing of test result
technical Specification Load Cell 5N Accuracy 0.5 F.S. Stroke Max 150mm Sled 200 g (Customization for other weight) Test Speed 100mm/min (ISO), 150mm/min(ASTM) (any speed can be set) Coefficient of Friction Tester Standards ASTM D1894, ISO 8295, TAPPI T816, GB 10006
