Coaxial Cable

RG6/UDescription

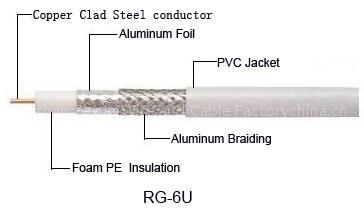

Name: RG6/U COAXIAL CABLE
Center Conductor: 1.02±0.02mm Copper Clad Steel
Dielectric: 4.57mm±0.03 Foam PE
Shield: Aluminum mylar/Bonded Al Foil
Braid: 16×4×0.12±0.005mmAl-Mag
Coverage: 60%
Jacket: Black PVC 6.8+0.10mm

Products Information

RG6/U COAXIAL CABLE
Purpose: Television,video observation systems and other.
Electrical Properties
Impedance 75±3 Ohm
Attenuation dB/100meters
5MHz 2.66
55MHz 5.25
211MHz 10.1
270MHz 11.48
300MHz 12.14
330MHz 12.76
400MHz 14.11
550MHz 16.7
1000MHz 22.97
nbsp;
Application:
Mainly applicable to the usage of optical line and equipment in communication business of connecting, transmisson telephone and TV. The operation frequency renge for coaxial cable is 5-1000MHZ.
nbsp;

Instructions
Characteristic impedance: 75Ω
Tow layers shielded(including 1 layers of aluminum and tinned soft copper line braid shielded)
Single bare round copper wire as internal conductor
Physical floaming polyvinyl insulated
PVC jacket
Keeping working temperature under 70°C for long-range operation
