TG8830F portable coating thickness gauge is using the magnetism measuring thickness method .It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) .This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.

Features

Precise measurements (2%+1)/(1%+1) Quick measuring response and rapid measuring speed Design of two independent parts , better applicability, stable measurement results Strong data processing and analysis :5 types of Statistic value and histogram

Technical Specification

Measuring range	F1:0~1250μm,
Measuring accuracy	1 point calibration : ±（2%+1）2 point calibration : ±（1%+1）
Calibration	1 point calibration /2 point calibration /basic calibration
Display resolution	0.1um (0~99.9um) / 1um (Over 100um)
Weight	250g(including battery package )
Operation environment	Temperature: 0℃~50℃ humidity: 20%RH～90%RH
Operation mode	Direct testing mode and block statistics mode
Measuring mode	continuous/single
Shutdown mode	manual/automatic
Operation alarm	Ring music to alarm mistake
Signal Dealing
Threshold	Limits setting and automatically alarm measured values out of limit
Data analysis	Analyzing a batch of measuring values via histogram
Statistic function	Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum
Data Merory
Thickness values	500 measuring data
Delete	Single doubtful data / All data of one group
Power supply
Battery	9V Nickel-hydride/ alkaline batteries
Power battery inspection	low voltage indication
Standard delivery	Main unit	1
	Integrated probe (F1)	1
	Calibration foil set	4
	Calibration base set	1
	9V alkaline battery	1
	Instruction manual	1

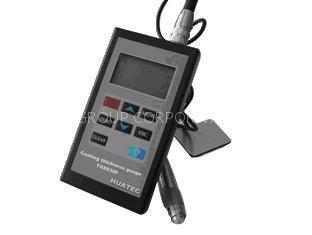

Coating Thickness Gauge TG8830F
