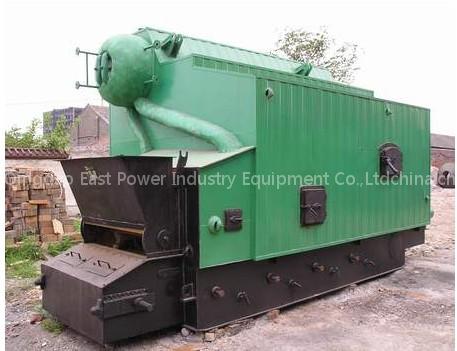

Coal fired steam boiler Ⅲ is a Boilers product. Key specs — Brand: EPCB; Origin: CHINA.
Product Description
Model | DZL1-0.7-AI | DZL2-1.0-AII | DZL4-1.25-AII | DZL6-1.25-AII | DZL10-1.25-AII | DZL15-1.25-AII |
Rated evaporation( t/h) | 1 | 2 | 4 | 6 | 10 | 15 |
Rated steam pressure( Mpa) | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 |
Feed water temp(℃) | 20 | 20 | 20 | 20 | 105 | 105 |
Rated steam temp(℃) | 184 | 184 | 194 | 194 | 194 | 194 |
active grate area(㎡) | 1.85 | 3.4 | 5.18 | 7.55 | 12 | 18 |
Applicable coal style | AII | AII | AII | AII | AII | AII |
flue gas temperature(℃) | 157.3 | 163.1 | 180 | 166.3 | 151.2 | 161.6 |
Designed thermal efficiency(%) | 80.33 | 80.54 | 80.28 | 80.94 | 80.91 | 81.50 |
