Cleaning Machine

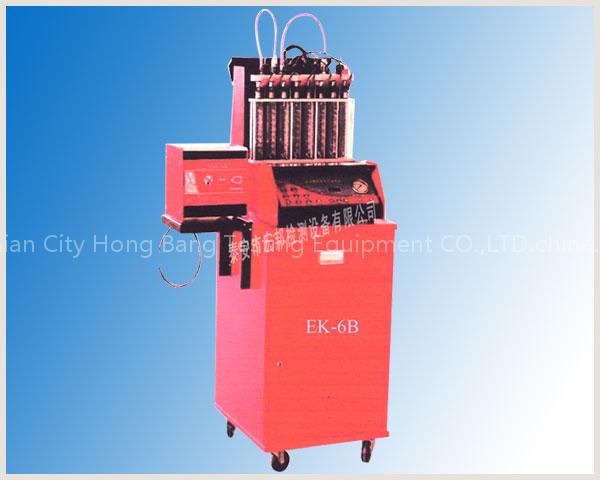

HB brand Fuel Injector Cleaning Automatic Detection Analyzer is suitable for the automatic detection, cleaning and quality analysis of electrical painting automobile injector.

Detection cleaning analysis projects:

can detect and analyze 1~6 pcs injectors’ quality.

can inspect the leakage, angle of spraying and the atomization state.

3.Detect the capacity and speed.

4.Automatic simulation, detect the whole process of ordinary spraying, slow spraying, middle speed spraying and fast spraying.

the blocking and failure injector adopt physics cleaning and chemical cleaning ( ultrasonic cleaning and testing cleaning)

6.Anti-removing cleaning function.

7.Detect injector’s opening pressure and closing pressure.

Technical parameters:

1.Outside Size: 440(W)*420(D)*480(H)

capacity: 120ML

3.Max. Testing Jars: 6pcs

4.System Oil Pressure: 0-6kg/cm²(adjustable)

5.Weight: 45Kg

6.Ultrasonic frequency: 25KHZ

7.Power: AC220V±10% 50HZz500W

8.Ultrasonic power: 100W

9.Working environment: +5℃-40℃

10.Rotate speed range: 0-9950r/min step size: 50r/min

11.relative humidity: <85%

12.pulse width: 0-20ms step size: 0.1ms

13.outside magnetic field intension:<400A/m

14.total time: 0-9950 times step size: 50 times

tank capacity: 4L

16.system flow: 5L
