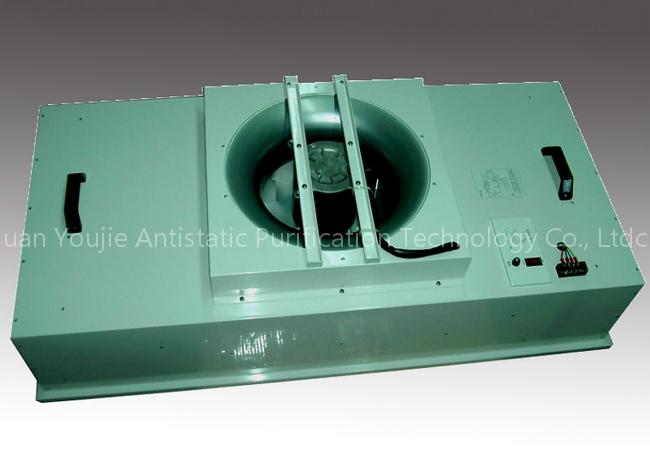

Clean room FFU
Specifications
- Origin
- China(Mainlland)
- Price Term
- EXW
Clean room FFU is a Air Conditioning Systems product. Key specs — Origin: China(Mainlland); Price Term: EXW.
Product Description
clean room system .
HEPA filter 99.99%efficiency
3.FFU,fan filter unit.
4.Attain ISO9001:2008
clean room FFU
Specification
1.Type:Fan filter Unit (FFU)
2.Frame: SUS201 stainless steel/copper plate
3.Average arrestance: HEPA 0.3 micron above 99.999%
4. governor control: with adjustable air flow speed
5. voltage/current: 220V/50Hz
6. efficient of filter: HEPA 0.3 micron above 99.999%
| type | FFU-1 | FFU-2 | FFU-3 | ||||
| FFU size | 1225*615*350(mm) | 615*615*350(mm) | 1175*575*350(mm) | ||||
| size of filter | 1220*610*69(mm) | 610*610*69(mm) | 1770*570*69(mm) | ||||
| air flow | 2000 M3/H | 1000M3/H | 1500M3/H | ||||
| fan | Fan made in Taiwan or in Chinese Mainland nbsp; | ||||||
| governor control | with adjustable air flow speed | ||||||
| voltage/current | 220V/50Hz | ||||||
| output power | 140W-240W | ||||||
| efficient of filter | HEPA 0.3 micron above 99.999% | ||||||
| material of frame | SUS201 stainless steel/copper plate | ||||||
Features
energy saving ability, with adjustable air flow speed, low operating cost
2.Special air passage design, low noise, uniform air flow speed
3.Light weight, easy to install
4.Adopting Computer remote control system.
Application:
These HEPA filters combine right features to give you optimum efficiency while keeping operating costs to a minimum. They are available in efficiency of 99.9995% tested on 0.3 micron particles; typical applications include electronics, pharmaceuticals, foods and many other locations where ultra-clean air is required.
Suitable for electronics, biopharmaceutical industry, hospital, and the occasions required the high cleanliness terminal filtration
Package:
Reasonable piece in a carton(size: 630*630*320mm, 630*520*320mm,), then in a wooden box. Or according to customers requirement.
Payment:
T/T with 30% deposit, rest balance B/L copy will be ok.
West Union, Alipay
Service:
Accept ODM, OEM.
All sizes are available at requests.
If you are interested in our filters, please feel free to contact me for detail. Wait for your inquiry.
