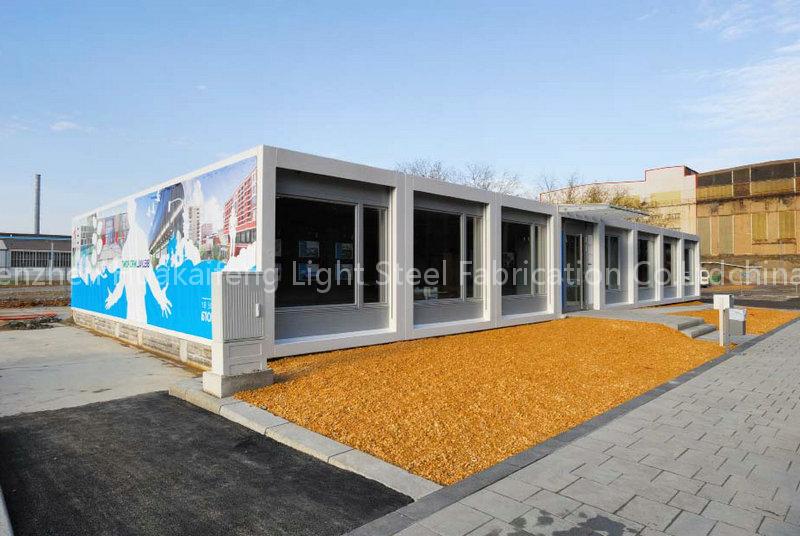

Classic modular house

Specification of Classic Prefabricated Modular Housing CHASSIS: 2.5mm steel sheet profile, Anti-corrosion treatment of the exterior surface Primer: 20 μm SC Zinc, Top: 180 Asphalt paint. COLUMNS: 2.5mm steel sheet profile Anti-corrosion treatment of the exterior surface Primer: 20 μm SC Zinc, Basin:50 μm Ferrodor EPX-29, Top: 30 μm Acric SC .

FLOOR: Top layer : 2mm thick vinyl covering Board : 20mm OSB board Insulation: 5cm polystyrene; 10cm rock wool Bottom Protection: 0.4mm galvanized sheet metal CEILING Roof cover: 0.6mm pre-painted galvanized metal Insulation: 5cm polystyrene; 10cm rock wool Vapor Barrier: 100 micron polyethylene Board: 8mm white laminated chipboard EXTERIOR WALL PANELS: outercover: 0.6mm pre-painted galvanized metal, Inner&outer surfaces 0.5mm polyerster dyed galvanized sheet metal Insulation: 10cm polystyrene; 10cm rock wool Vapor Barrier: 100 micron polyethylene Board(Optional): 8mm white laminated chipboard, 9mm fibercemnet ,outside painted INTERIOR WALL PANELS: Board(two side ): 8mm white laminated chipboard, 9mm fibercemnet ,outside painted Insulation: 10cm polystyrene; 10cm rock wool Vapor Barrier: 100 micron polyethylene EXTERIOR DOOR 900mm x 2100mm with polyurethane sandwich panel filled aluminum door INTERIOR DOOR 800mm x 2000mm white PVC with cylinder lock and laminated frosted glass WINDOWS 800mm x 1200mm white PVC with the dimension of 4 + 10 + 4 thermo-glass ELECTRICAL WORKS All cabing in ceiling and sandwich wall panel with GB standards, 2 receptacles ,2 x 36w fluorescent light, outlet for A/C unit
