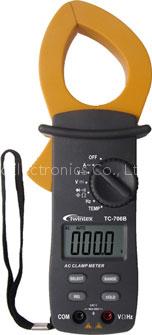

Clamp Meter TC-706B

FEATURES
- Clamp open 35mm
- LCD unit symbol display for easy reading
- Strong antimagnetic and anti-jamming performance
- Full function protection
- Relative value, capacitance measurement, data hold
- Auto power off after 15 minutes
- Fast speed charging power supply function
- CE safety design, improves operating safety

SPECIFICATIONS
DCV: 400mV/4V/40V/400V/600V
ACV: 400mV/4V/40V/400V/600V
ACA: 400A/1000A
Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF
Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz)
Centigrade temperature: (-40~ 1000) degree Celsius

SPECIAL FUNCTIONS
Diode test: YES
Continuity alarm: <30Ω±10Ω
Low battery indication: <2.4 V
Data hold: YES
Auto off: Approx.15min.
Function protection: YES
Input impedance: 10MΩ
Sampling rate: 3 times/Sec.
AC frequency response: ACA 50Hz, ACV (50~400)Hz
Operation mode: Manual or auto range
Max. display: 4000
Clamp open: 35mm
Power source: 3V (2*1.5V) AAA
Power dissipation: Quiescent current approx.2mA
Standard accessory: Test lead, battery, user manual, TP01 temperature probe 1PCS
Size: 195x65x33mm
Weight: 290g (including battery)
