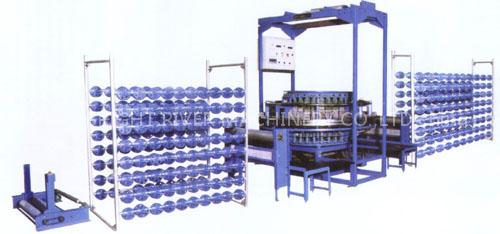

Circular Loom

We manufacture and export complete machinery sets for whole plants making:
P.P. woven bags, P.P. container bags, PE shopping bags,PE net bags, PE net bags, Paper bags, other plastic products andpackaging products.

		BR-CL-750	BR-CL-1500
Used Yarn		PP/HDPE Flat Yarn	PP/HDPE Flat Yarn
Warp Supply System	PCS	4	4
Number of Shuttles	MM	38-150	38-200
Inner Dia. of the Warp of Warp Package	MM	38mm,150-200mm	38mm,150-200mm
Inner Dia. of the Warp of Weft Package	MM	400-750	750-1300
Lay-flat width of the tubular cloth	PCS	384-640	640-1040
Number of warps	pcs/10cm	23.29-70.89	23.29-70.89
Density of wefts	Rolls/min	130-150	130-150
Weft Inserting Speed		Included	Included
Inverter	KW	4.0 P	4.0 P
Power of the Main Moo	KW	0.18	0.18
Power of cloth-winding motor	KW	0.36	0.36
Overall dimensions of main body	MM	9740 2400 2800	10040 2800 3100
Weight	KGS	3000	3000
Shipment		6sets/40'	6sets/40'
