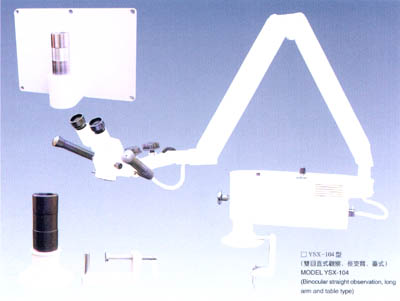

China (Mainland) YSX Series Operation Microscope

Specifications: Due to the different ways of fixation, working distance and magnification, 12 models of instrument for different purpose can be assembled with different parts. All models are equipped with halogen-tungsten lamp and fiber-optic coaxial illumination.

They can meet the needs of the orthopedics, surgery, brain surgery, ear-nose-throat surgery, ophthalmology, gynecology etc. Because of the lightweight and flexibility, they can also be used in microscopy and diagnosis of diseases.

Observation unit: Binocular straight observation unit f\'\'=87mm Binocular tilted observation unit f\'\'=87mm f\'\'=174mm Focal length of objective assembly: f\'\'=200mm, f\'\'=250mm, f\'\'=300mm, f\'\'=400mm Division value on handwheel: 0.6x, 1x, 1.6x Stand: both floor type and table type available Movable arm: both long and short arms available
