China (Mainland) Integrated Circuit

Specifications: TWO-Terminal IC 1.2V Reference The AD589 is a cost,temperature compen-sated band gap voltage reference which provides a fixed 1.23v output voltage for input currents between 50uA and high stability of the AD589 is primarily dependent upon the matching and thermal tracking of the on-chip components.

Analog device\'\'s precision bipolar processing and thin-film technology combine to provide excellent performance at low cost. Additionally, the active circuit produces an output impedance ten times lower than typical low-TC Zener feature allows operation with no external components required to maintain full accuracy under changing load conditions .

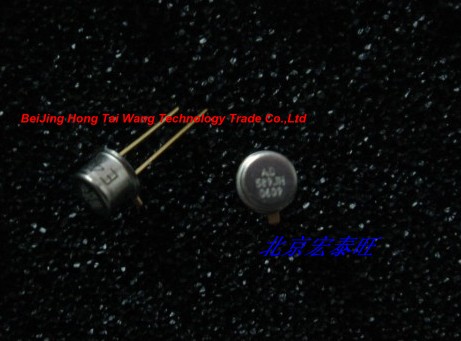

The AD589 is available in seven AD589J,K,M grades are specified for 0C---+70C operation.while the S,V grades are rated for the full -55C --+125C temperature grades are available in a metal can (H-02A) AD589J is also available in an 8-pin SOIC package
