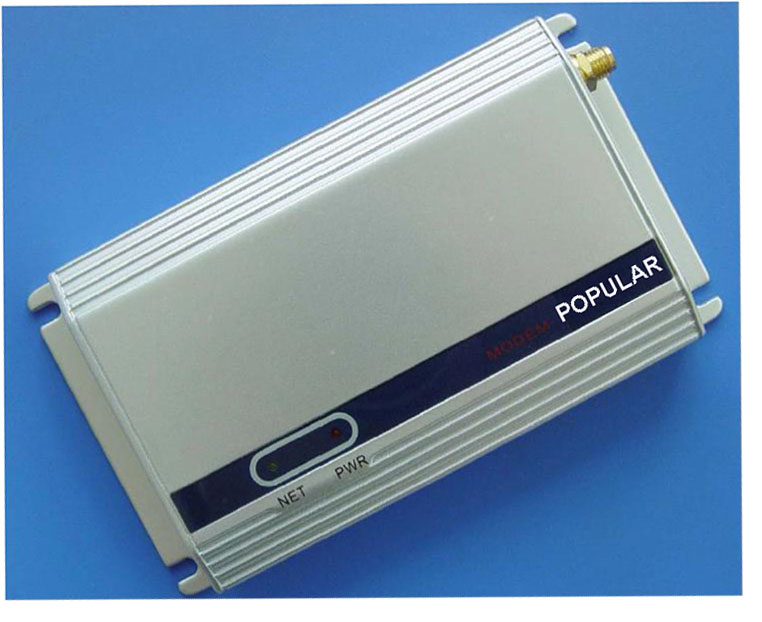

China (Mainland) Edge / GPRS USB Adapter Modem

Specifications: The p200m is designed for global market, p200m is a quad--band GSM/GPRS modem that works on frequencies GSM 850 MHz, egsm900mhz, dcs1800mhz and pcs1900mhz. P200m provides GPRS multi-slot class10 capability and supports the GPRS coding schemes cs-1, cs-2, cs-3 and cs-4. P200m is the ideal solution for voice, data, SMS and fax communication.

P200m makes integration as simple as possible, primarily for users in the m2m market segment: A stand-alone device, the modem is fitted with standard interfaces for a power supply, an antenna, a PC, and a handset, with its plug and play technology making it very easy to put into operation.

In order to make sure that the modem be always online, p200m provides the ctrl port for emergency. Via the ctrl port, the modem can be restarted correctly.

Thanks to its robust case, the p200m wireless modem is ideal for use in many different business segments, such as in measurement and remote maintenance, traffic systems, transportation and logistics, vending machines, security, and building technology.

Features: Quad-band gsm850/egsm900/dcs1800/pcs1900 Certified in accordance with GSM phase 2/2+ Output performance: - class4(2w) for egsm900 - class1(1w) for dcs1800/pcs1900 Control via at commands Input voltage range dc+6---+30v Dimensions:122x68x21.6mm Weight: Approx.165g SIM card:3v or 1.8v Data interface: Rs232 GPRS multi-slot class 10 GPRS mobile station class b SIM application toolkit Applications: Security systems Traffic system Fleet management Teleservice Telematics Telemetry Remote monitoring Remote control Remote meter reading Mobile office Vending/pos
