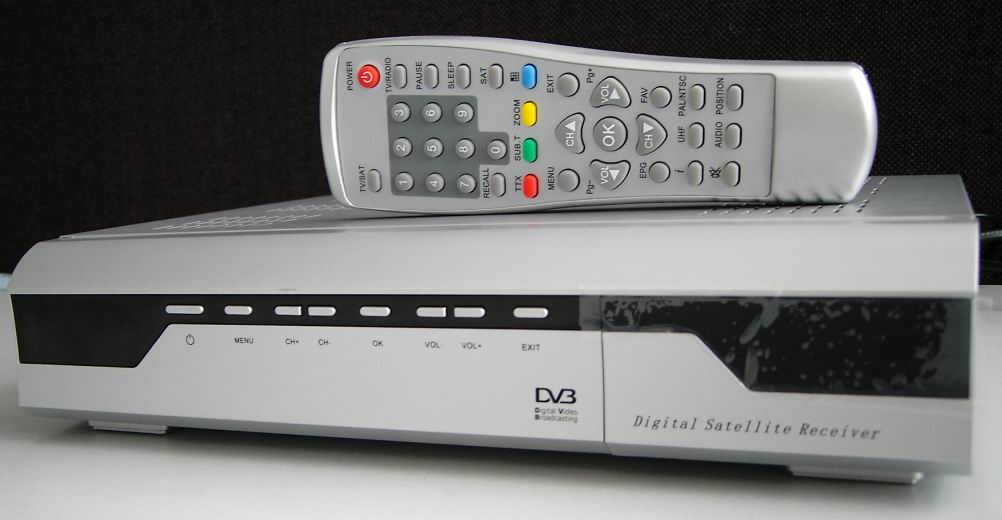

China (Mainland) DVB 2700A With Patch Software

Specifications: Description 1. Fully DVB-S/MPEG-2 compliant 2.5000 channels memory space 3. SCPC & MCPC receivable from C/Ku band satellites 4.256 colors on screen display (OSD) 5. Video Outputs Support for all NTSC/PAL/SECAM worldwide standards, and Macrovision copy protection support 6. DiSEqC 1.0/1.1/1.2 suport 7.

Multi-language OSD (English, German, Italian, Spanish, French, Turkish, Arabic, Persian, Greek, Portuguese, Russian, Czech, Polish) 8. Multi-language audio and subtitle reception 9. Electronic program guide (EPG) support 10. Teletext and close caption output through VBI and OSD 11. RF modulator for TV standard (PAL B/G/D/I/K, NTSC) ( optional). 12.

TWO SCARTS sockets (optional) 13. Dolby Digital encoded bit -stream output on S/PDIF port 14. Picture in graphics (PIG) support 15. NIT search supported 16. Automatic search for satellites and transponders 17. PC to box and box to box upgrade through RS-232 port 18. Timer function support 19.4:3,16:9 aspect ratio support through pan/scan or letter-boxing 20.

Games station 21.

AC3 Specification Tuner Input Frequency:950~2150MHz Loop Out Frequency:950~2150 MHz Input Level: -65~-25 dBm Input Impedance:75 LNB Power:14V/18V/OFF, Imax = 500Ma Channel Decoding Waveform: QPSK Roll Off Factor:0.35 FEC:1/2,2/3,3/4,5/6,7/8, Automatic Reed Solomon:204,188, t = 8 Symbol Rate:1.0~45 MS/s Demultiplexer Standard: ISO/IEC 13818-1 Input Max.

Bit Stream Rate:60Mbps(Serial)/7.5MBps(Parallel) Video Decoding Standard: ISO/IEC 13818-2, MPEG-2 Aspect Ratio:4:3,16:9 Video Resolution: Max.720x480 NTSC & 720x576 PAL Audio Decoding Standard: ISO/IEC 13818-3 Audio Channel: Mono, Dual-channel, Stereo, and Joint Stereo Sampling rates:16,22.05,24,32,44.1,48kHz Processor and Memory CPU: CX24142 Clock Frequency:133MHz Flash Memory:1M bytes SDRAM Memory:8M bytes AV Output Video De-emphasis: CCIR REC.405-1,625LINES Video Bandwidth:5.5MHz Video Output Impedance:75 Video Output Level:1.0Vp-p Audio Output: Mono, Left/Right Stereo Audio Output Frequency:20Hz~ 20KHz Audio Output Impedance: Low Audio Output Level:0 6dBu Front Panel LED Display:4-digit LED to indicate channel number and status Keys: Up, Down, Left, Right, Menu, OK IR Receiver:38KHz Rear Panel 2 RF Input: F-type, connector Loop Through Output: F-type, connector RCA Output:4RCA(1 Left Audio,1 Right Audio,1 Video, coaxial digital audio) RS232 Serial Port: DB-9 Male,11.52Kbps SCART:2(VCR, TV) (optional) Digital Audio Output: S/P DIF Fiber-optical RCU Category: IR(Carrier 38KHz) Battery:2x1.5V AAA Power Input Voltage: AC100~240V 10%,50/60Hz Power Consumption:30Wmax Ambient Operation Temperature:0~40 Size:252mm(W) x 200mm(D) x 52mm(H) Weight:1.5Kg
