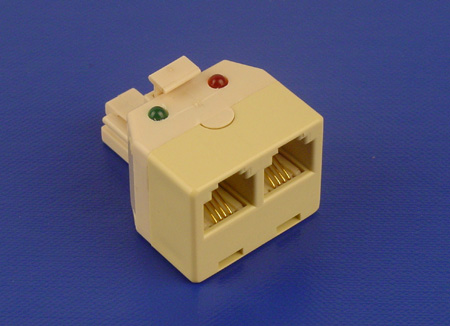

China (Mainland) Coupler Jack

Specifications: Electrical: Current rating:1.5 a Voltage rating: AC 125v Insulation resistance:500 megohms min Dielectric: AC 750v,50-60hz,1 minute Contact resistance:30-50 milliohms max Mechanical Mating/unmating force:2 KG max Retention strength:8 KG min between plug and jack Durability:600 mating cycles min Material of products Plastic housing: Abs(ul94v-0) ul no.: E139063 Spring filament:0.46mm phosphor bronze ni-plating followed with gold-plating Gold plating:3u,6u,15u,30u,50u Capacity:200,000pcs/day Deliver date:15days after receiving L/c
