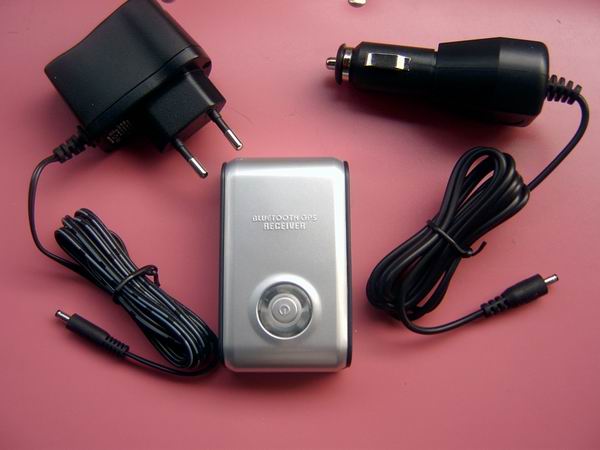

China (Mainland) Bluetooth GPS Receiver

Specifications: General GPS Chip NMEX GPS(chip) Module Frequency L1,1575.42MHz C/A Code 1.023MHz chip rate Channels 16 channels all in view tracking Antenna(internal) Built-in low noise Exteral Antenna Port Active MCX Antenna Sensitivity To-152Bm Tracking,Superior Urban Canyon Performance Acquisition Rate Cold Start 60 sec,average AccelerationWarm Start 38 sec,average Motional Jerk 20m/sec Hot Start 12 sec,average Reacquisition 1 sec Accuracy 3m CEP(50%),7m(90%) Velocity 0.1m/sec,without SA Time +100ns or -100ns synchronized to GPS time Power Built-in rechargeable 880mAh Li-ion battery and 5V DC input Operation Current 45mA(Typical) Operation Time 20hrs,after fully charged,in continuous Charging time 2.5hrs(Typical) Environmental Operating Temperature -20c to +60c Relative Humidity 5% to 90% non-condensing Accuracy Position 3meters CEP(50%),without SA(Horizontal) 7 meters (90%) Velocity 0.1m/sec.without SA Time +100ns or -100ns synchronized to GPS time Daturm WGS-84(or by demand) Dynamic Conditions Altitude Velocity Interface Communication Protocol Communicate with host platform via Bluetooth (class 2)serial port profile Bluetooth communication distance GPS Protocol Default:NMEA-0183(V3.01)-GGA(1),GSA,GSV RMC(1),VTG(1),Brand rate 9600 bps or 38400bps Data bit: 8,stop bit:1(Default) Device Size 82(L)x46(W)x24(H)mm 3.2(L)x1.8(W)x0.9(H)inch Accessories Car charger(12V in,5V output) AC adaptor(5V output,500ma)
