China (Mainland) Alarm For Cable

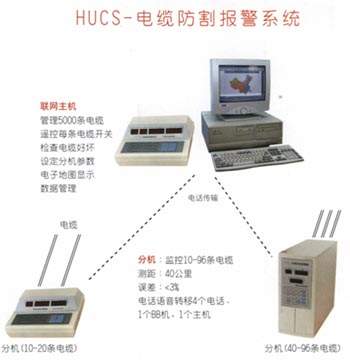

Specifications: Our company is in xiamen city of china. We knew that the telephone communication cable is often broken resulting from the theft, damage and other accidents, that always brings considerable loss to telecom company. The hucs type of automatic alarm system of cable breaking is our product just designed and produced for the reason.

This type of alarm can inform the concerned of specific situation: The exact broken cable, the position of the damage(kilometers) and the exact moment of the accident once the cable is broken.

All the work can be done by screen, siren and speech sounds within 7 seconds after the cable is broken, besides, the alarm will store such information into its inner instrument for check. At the same time it conveys the information to the four appointed telephone by the form of speech sounds.

On the other hand, users can record the warning message on the alarm. Each alarm can work independently or within a network formed by a mainframe and extensions, when the warning message will be conveyed to a mainframe or a computer simultaneously. Each mainframe can manage 255 sets of instruments.

Such instruments can be extended for fire monitor and theft monitor in the working room. All in all, this type of alarm system does play a great role in the safeguard of telecommunication. Major technical index: 1. The number of cables which can be monitored:24 groups 2. The maximum measurement distance:40 kms 3. Measurement error:3% 4.

The alarm can set the fire alarm and theft alarm on the 24 parts of cables at will 5. The times of the storage of warning message:9 times 6.

The response time of the alarm:6 seconds 7.(1)the alarm lasts 3 minutes,80db, the interval of every alarm is 3 minutes (2)to convey the warning message to one mainframe within the network (3)to convey the warning message to four telephones,(the sound message informs which cable is broken at the exact position) 8.

Power supply: Ac 220v, dc 48v, the tow current can switch to each other Automatically 9. Mainframe: It can manage 255 sets of extensions, power supply: Ac 220v, Dc 12v, the tow current can switch to each other automatically 10. The computer within the network: Map, diagram, database,(the mainframe can Be used with the computer or not) 11. Volume:33.5cm
