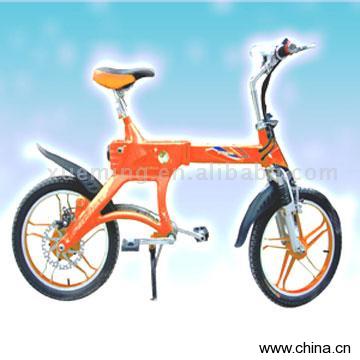

Chainless Drive Folding Electric Bicycle

Model No.:XM-QA Product Origin:China Brand Name:Xueming Price Terms:FOB Payment Terms:T/T 30% deposit Certification:CE, UL, ISO2000 Description:Product Name: Chainless Drive Folding Electric BicycleModel Number: XM-QAPlace of Origin: ChinaFeatures:1) Max. speed: 25-35km/h2) Range per charge: 50km3) Charging time: 5 - 6h4) Weight of whole bicycle: less than 25kg5) Loading weight: 80kg6) Climbing ability: 12-degree and 15-degree pedal assisted 7) Torque: 13.5 x 4 = 54N.m8) Type of battery: lithium battery (36V and 12Ah)9) Colors: red, yellow, blue, Chinese date red, black and customized10) Traveling noise: less than 62dB11) Head light: integration of horn, battery gauge and the head light of the bike12) Voltage: 220V (110V) and 50Hz13) Power: 250W14) Charging way: direct 15) Battery capacity: 900 times16) Burglarproof system: front fork lock and wireless alarm lock17) Safety equipment: electricity supply will be off when brake18) Braking system: front-wheel "V" brake and rear-wheel disc brake19) Suspension: front shock absorber20) Motor: a) Brushless, inner rotor, direct current and high speed b) Characterized in weak current 36V and strong power 250Wc) Power factor: 84%d) Mechanical efficiency: 95%e) Starts quickly and drives stablyf) Patent design shift system and clutch ensures weak current and strongtorque which enhance climbing capacity 21) Frame: made of steel and acrylic painting22) Drive system:a) Patent designed chainless drive system and clutch eliminate the bottleneck of conventional electric bicycleb) That is, while electric force, the clutch will be separated from man forcedevice automatically, and instead, while man force, clutch will beseparated from electricity device accordingly.

So when man force, motor will be will be off-power all the time, so the user will ride it as easy as anormal bikec) If there is no electricity supply to the motor, the motor will be off allthe time, so it will be as easy to push it as a regular bike d) However, conventional electric bike, hub and motor is an integration, sowhen we pedal, the motor will be still on and generate electricity, difficultand tired to push or go ahead23) Driven system:a) Hub motor b) Driven by rear wheel24) Folding dimensions: 75 x 36 x 72cm Outer packing: 7-layer carton dimensions: 75 x 36 x 72cm Conveyance:Qty/20' FCL: 144pcsQty/40' HQ: 288pcs
