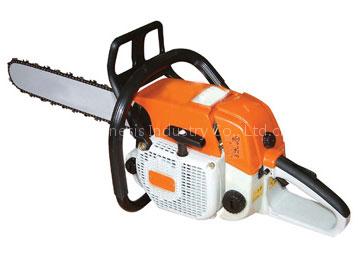

Chain saws series

Max. power: 3.6kW / 8,200rpm

Netweight(excluding chain,guide pale and fuel): 6.7kg

Gross weight(including standard guide plate,chain): 8.4kg

Engine type: single cylinder, air-cooled, tow-cylinder, crankcase return flow scavenging

Bore x stroke: 52 x 34mm

Displacement:72.2ml

Guide plate length: 50cm (20")

Chain pitch: 9.32mm (3/8")

Drive link count: 72

Chain lubrication: offer by automate oil pump

Volume of fuel tank: 0.68L

Volume of lubricating oil tank: 0.36L
