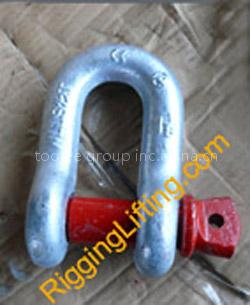

Chain Shackle Screw Collar Pin,US SPEC.

Screw Pin Chain Shackle

Forged shackle, Lifting shackle, Dee shackle,Screw pin shackle.

Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification G210

Material &Process: Carbon steel & alloy steel, drop forgedClass or Grade: grade 60Certificate: test cert as request.Finished: Sel-color/E-GALV./Hot Dipped Galv.Packing: gunny bags/cartons/customer Minimum Order Quantity: 200pcs for one batch.

ITEM NO	NominalSize	WorkingLoadLimit	Dimensions(mm)										Weight
													each
	(in.)	(tons)	A	B	C	D	E	F	G	H	I	M	(kg)
CS0832	1/4	1/2	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	0.05
CS1032	5/16	3/4	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.60	42.2	0.08
CS1232	3/8	1	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	0.13
CS1432	7/16	1-1/2	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	0.20
CS1632	1/2	2	20.6	16.0	12.7	12.7	46.0	30.2	41.4	77.0	9.65	68.5	0.27
CS2032	5/8	3-1/4	26.9	19.1	15.7	16.0	58.5	38.1	51.0	95.5	11.2	85.0	0.57
CS2432	3/4	4-3/4	31.8	22.4	20.6	19.1	70.0	46.0	60.5	115	12.7	101	1.20
CS2832	7/8	6-1/2	36.6	25.4	24.6	22.4	81.0	53.0	71.5	135	12.7	114	1.43
CS3232	1	8-1/2	42.9	28.7	25.4	25.4	93.5	60.5	81.0	151	14.2	129	2.15
CS3632	1-1/8	9-1/2	46.0	31.8	31.8	28.7	103	68.5	91.0	172	16.0	142	3.06
CS4032	1-1/4	12	51.5	35.1	35.1	31.8	115	76.0	100	191	17.5	156	4.11
CS4432	1-3/8	13-1/2	57.0	38.1	38.1	35.1	127	84.0	111	210	19.1	174	5.28
CS4832	1-1/2	17	60.5	41.4	41.1	38.1	137	92.0	122	230	20.6	187	7.23
CS5632	1-3/4	25	73.0	51.0	54.0	44.5	162	106	146	279	25.4	231	12.1
CS6432	2	35	82.5	57.0	51.0	51.0	184	122	172	312	31.0	263	19.2
CS8032	2-1/2	55	105	70.0	66.5	66.5	238	145	203	377	35.1	330	32.5
