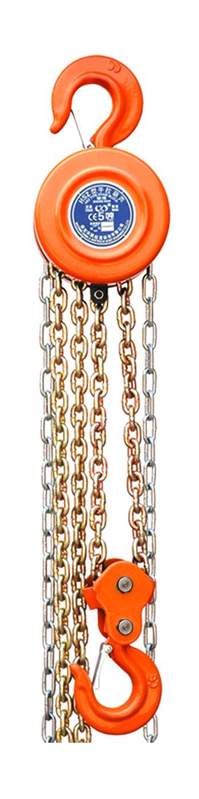

Chain Block

Name: Chain Block
SKU: VT

Specifications

Request Quote

Quick answer

Chain Block is a Other Construction Machinery product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.

contact mail: thqzjx666(AT)yahoo(DOT)com

Model VT1-2 VT1 VT11/2 VT2 VT3 VT5 VT10

Capacity (ton) 0.5 1 1.5 2 3 5 10

Lifting Height (m) 2.5 2.5 2.5 3 3 3 3.5

Testing Load (t) 0.75 1.5 2.25 3 4.5 7.5 12.5

Pulling Force to full load (kgf) 25 33 34 34 35 39 41

No.of Fall Chains 1 1 1 1 2 2 4

Dia.of Load Chain (mm) 6.3 6.3 7.1 8 7.1 8 9

Net.Weight (kg) 8.3 11.3 13.5 21 22 40 77
