Listing ID#10211569
ModelPYB1750
CategoryMining Machinery

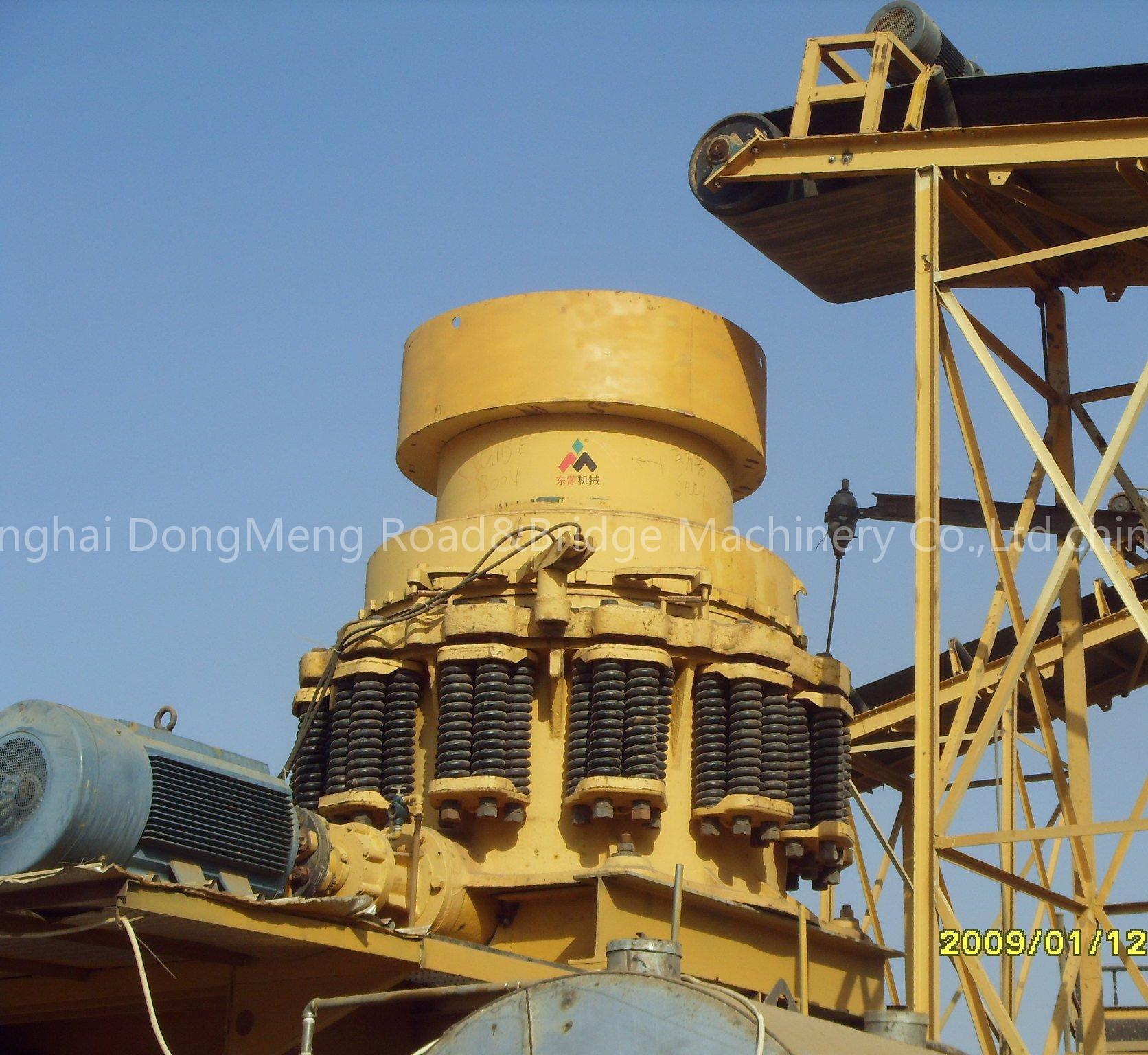

Certified Cone Crusher
Specifications
- Brand
- DongMeng Machinery
- Origin
- Shanghai, China(Mainland)
- Price Term
- FOB
Quick answer
Certified Cone Crusher is a Mining Machinery product. Key specs — Brand: DongMeng Machinery; Origin: Shanghai, China(Mainland); Price Term: FOB.
Product Description
Certified Cone Crusher,Spring Cone Crusher,Cone Crusher
Description of Cone Crusher
1. Adopting the laminating crushing principle, and the output product is with cubic structure, which reduces the needle-like, sheet materials;
2. With the reasonable structure, it is of easy operation and maintenance, especially the wear-resistant components are of easy replacement;
3. In normal use, the failure-free operation rate of this equipment is over 95%.
Application of Cone Crusher
This key crusher is commonly used for breaking hard and medium hard ores and rocks in the fields of metallurgical industry, construction, utilities, transport, chemical industry and building materials industry.
Description of Cone Crusher
1. Adopting the laminating crushing principle, and the output product is with cubic structure, which reduces the needle-like, sheet materials;
2. With the reasonable structure, it is of easy operation and maintenance, especially the wear-resistant components are of easy replacement;
3. In normal use, the failure-free operation rate of this equipment is over 95%.
Application of Cone Crusher
This key crusher is commonly used for breaking hard and medium hard ores and rocks in the fields of metallurgical industry, construction, utilities, transport, chemical industry and building materials industry.
Technical Parameters of Cone Crusher
| Model | Diameter of crushing cone (mm) | Max. feed size (kW) | Adjusting range of discharge opening (r/min) | Production capacity (t/h) | Motor power (t) | Main shaft swaying frequency (r/min) | Weight (t) | Overall dimension (mm) |
| PYB900 | 900 | 115 | 12-50 | 50-90 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 55 | 333 | 11.2 | 2692×1640×2350 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 55 | 333 | 11.3 | 2692×1640×2350 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 110 | 300 | 25 | 2790×1878×2844 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 | 2790×1878×2844 |
