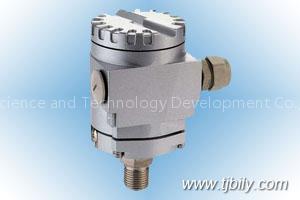

Ceramic capacitive pressure transmitter

PT Series products in the standard model, using German technology the most advanced ceramic technology, without an intermediary fluid, strong impact, over-voltage range up to several times to the times; high stability better than 0.1% per year, with intelligent matchappearances.

1, measurement range: the table below 2, working voltage: 12.5 ~ 36VDC 3 Accuracy class: ± 0.5%, ± 0.2% 4, medium temperature: 0 ~ 80 ℃ 5, the output signal :4-20mA (wire) ,1-5V (3 wire) 6, delay: better than 0.01% of full scale 7 Pressure Type: gauge pressure, absolute pressure, negative pressure 8, measuring medium: liquid, gas or steam 9 Connection: can be customized according to customer needs Measure form Max measure range Min measure range Relative pressure 0-4MPa 0-1KPa Negative relative pressure -100KPa-0 -1KPa-0
