Listing ID#10135947
ModelWQ/WQD
CategoryPumps & Parts
Quick answer

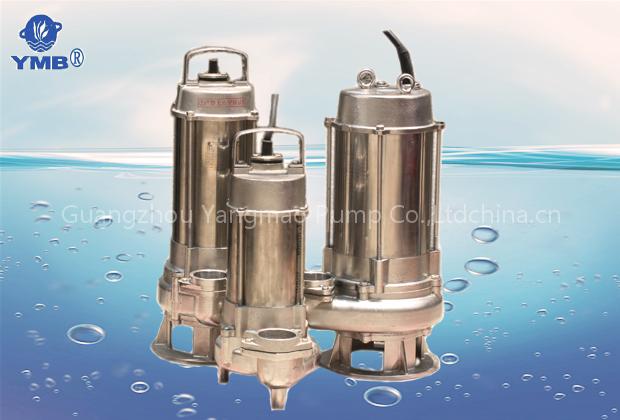

Centrifugal pump is a Pumps & Parts product. Key specs — Brand: YMB; Origin: Guanghzou.
Product Description
1.Features
(1)All the pumps castings and hull adopt 316L stainless steel.
(2)It is very strong and not easy to have sand holes and anti-corrosion and surface smoothness is good.
(3)PH value 2-12.
(4)Passed ISO14001 and ISO9001
(5)Easy to use.
(6)Energy saving and environmental protection.
2.Applications
(1)Discharge the sewage of the methane-generating pit.
(2) Discharge the sewage of the textile mill.
(3) Industry and mining, enterprise, hospital, guesthouse sewage treatment.
3.Parameter
(1)All the pumps castings and hull adopt 316L stainless steel.
(2)It is very strong and not easy to have sand holes and anti-corrosion and surface smoothness is good.
(3)PH value 2-12.
(4)Passed ISO14001 and ISO9001
(5)Easy to use.
(6)Energy saving and environmental protection.
2.Applications
(1)Discharge the sewage of the methane-generating pit.
(2) Discharge the sewage of the textile mill.
(3) Industry and mining, enterprise, hospital, guesthouse sewage treatment.
3.Parameter
No. | Model | Rated flow | Rated head | Max flow | Max head | Rated | Rated power | Pipe diameter | |
Voltage | Frequency | ||||||||
m3/h | m | m3/h | m | V | Hz | KW/Hp | DN | ||
1 | WQD10-10-0.75G | 10 | 10 | 24 | 18 | 220 | 50 | 0.75/1 | 50 |
2 | WQ10-10-0.75G | 10 | 10 | 24 | 18 | 380 | 50 | 0.75/1 | 50 |
3 | WQD5-15-0.75G | 5 | 15 | 24 | 18 | 220 | 50 | 0.75/1 | 50 |
4 | WQ5-15-0.75G | 5 | 15 | 24 | 18 | 380 | 50 | 0.75/1 | 50 |
5 | WQD15-9-1.1G | 15 | 9 | 29 | 20 | 220 | 50 | 1.1/1.5 | 50 |
