Listing ID#10055325
ModelRX, BRX, HRX)
CategoryResistors
Quick answer
Cement Resistors (RX, BRX, HRX) is a Resistors product. Key specs — Brand: Pak Heng; Origin: China.
Product Description

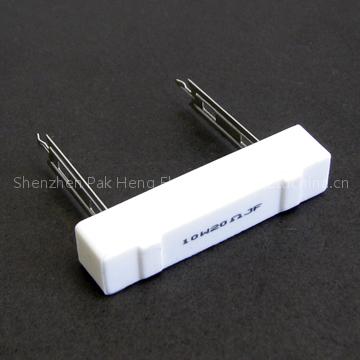

Cement Resistors(RX/BRX/HRX)
1, Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity
2, Operating ambient temperature: -55C to +275C
3, Resistance tolerance: ± 1%, ± 2%, ± 5%, ± 10%
1, Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity
2, Operating ambient temperature: -55C to +275C
3, Resistance tolerance: ± 1%, ± 2%, ± 5%, ± 10%
Forming Type & Power:
SQP: 1W-11W, 15W, 17W, 20W, 25W
SBH: 5W-11W, 15W, 17W, 20W, 25W
SQM: 1W-11W, 15W, 20W
SQS: 5W, 7W, 10W, 15W, 20W, 25W
SQO: 4W, 5W, 6W, 7W, 8W
SQZ: 3W-11W, 15W, 17W, 20W, 25W
SQH: 3W-11W, 15W, 17W, 20W, 25W, 30W, 40W, 50W, 100W
SHG: 10W, 11W, 15W, 20W, 25W, 30W, 40W
Z4-16, Z5-16: 4W, 10W
ZC-11: 5W
M450: 80W
Tolerance: ± 1%, ± 2%, ± 5%, ± 10%
Range: 0R01-100K
| Packing: | 12 Different Forming Type |
|---|---|
| Model NO.: | BRX |
| Standard: | 1w to 25w |
| Productivity: | 100000000PCS /Month |
| Unit Price/Payment: | T/T Payment |
| Trademark: | Pak Heng |
| Origin: | China |
| Min. Order: | 2000PCS |
| Transportation: | Fca Hong Kong |
| Type: | Power Resistors |
| Function: | Protective Resistor |
| Installation: | Dip Resistor |
| Material: | Wire-wound Resistor |
| Resistance: | Fixed Resistor |
| Package Type: | Throught Hole |
