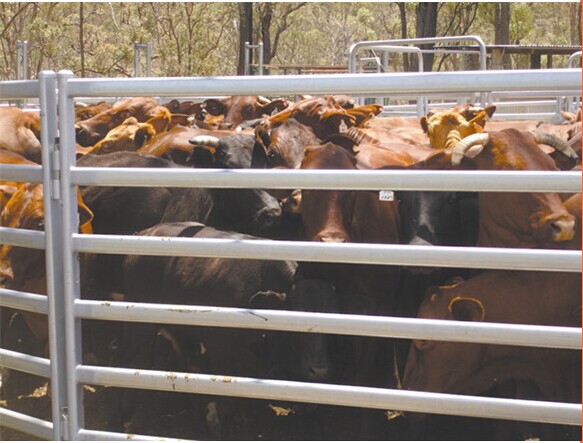

Cattle panels

Cattle panels 1.Material: Pre-galvanized,Hot dipped galvanized,powder coating,PVC coated and etc.

Round Tube material pre-galvanized round tube finishing(zinc coating) 16microns HeightxLength 1800mm x 2100mm vertical pipe 32mm O.D x1.6mm thickness     42mm O.D  x 1.6 mm thickness horizontal rails (6 round rails) 32mm O.D x1.6mm thickness   42mm O.D  X 1.6mm thckness welds bull bars are fully welded, each weld is protected with epoxy paint Oval tube material pre-galvanized Oval tube finishing(zinc coating) 16 microns HeightxLength 1800mm x 2100mm Vertical pipe 50 x 50mm RHS x 1.6mm thickness    40 x 40mm RHS x 1.6 mm thicknss Horizontal rails  (6 oval rails) 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm  thickness  40x120mm oval rail x 1.6mm thickness welds bull bars are fully welded, each weld is protected with epoxy paint RHS tube material pre-galvanized RHS tube finishing(zinc coating) 15 microns HeightxLength 1800mm x 2100mm vertical pipe 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness horizontal rails (6 square rails) 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness welds bull bars are fully welded, each weld is protected with epoxy paint 2.Process: Firstly,we prepared the pipe,then put the pipe on the welded shaping machine,the pipes are galvanized, welded the pipe together,then make the spot smoothing then silver painted.

3. Feature : It is simple in structure; Easy maintenance;Short installation period; Less weight; Easy for transport; Good ventilation. 4.Advantages of our new type livestock horse/cattle/goat cow farm fence panels: A Farm fence can stand against fierce striking of cattle, horse,goats,sheep…  B Durable, Lifetime can reach to twenty years.

Easy maintenance  C Farm fence is light, Easy to transport and install, Ventilates diaphanous D Knotted wire mesh offers high strength and tensile strength E Good pressure resistance, Corrosion resistance and weather resistance F Anti-oxidizing property 4.Categories: Sheep panels(economical)   Size 1.8m height,2.1m or 2.4m length Vertical pipe RHS 40X40X1.5mm or round pipe 40x1.5mm Horizonal pipes Oval pipe 80x40x1.6mm Bars/Rails  6 bars/rails Assessories With lugs,caps and pins

Cattle panels(Heavy duty) Size 1.5m or1.8m height,2.4m or 3m length Vertical pipe RHS 50X50X2mm or round pipe 60x2mm Horizonal pipes Oval pipe 80x40x2mm Bars/Rails 6 bars/rails Assessories With lugs,caps and pins

Horse yard panels Size 1.8m height,2.1m or 3m length Vertical pipe RHS 50X50X1.6mm OR round pipe50x1.6mm Horizonal pipe Three types(round,RHS,oval) 1)Round pipe:32x1.6mm,42x1.6mm 2) Square pipe:40x40x1.6mm,50x50x1.6mm 3) Oval pipe:30x60x1.6mm,40x80x1.6mm Bars/Rails 6 bars/rails Assessories With lugs,caps and pins
