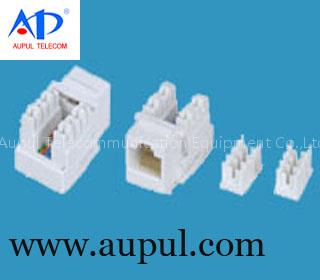

Cat 6 Keystone Jack

Features

1.Available in Cat6 T568A/B wiring schemes, meet or exceed TIA/EIA Cat6 requirements

new design allows high density solution

V style IDC contacts flex not fatigue when terminated

4.Termination caps prevent wire from dropping off

5.Housing: high temperature thermoplastic

6.Compact jack design, 8 positions and 8 conductors

7.Contract: phosphor bronze , phosphor bronze with 3 to 50 u" gold plate

2. Material

1. Housing; High-impact PC.

2. IDC Contact : Environmental Phosphor Bronze with gold-plated 30U.

3. Installment:

-Apply to the connection of the communication sockets between equipment room and workaround. Meet or exceed CAT.6A T568A and T568B ( Termination requirement)

-Rear round locked design products the wires from the excessive bending or droping and meanwhile protect the contact.

Insulation strength: under normal atmospheric, the insulation resistance is more than 1000 MO

Dielectric strength when DC 1000V ( or AV 700V ) is applied, there is no evidence arc and spark-over for 1 minuters

Accept 22-26 AWG solid with a insulation diameter 0.4-0.6mm.

4. Certificate:

ISO 9001, ROSE
