Listing ID#10063649
ModelCast Steel Globe Valve
CategoryValves

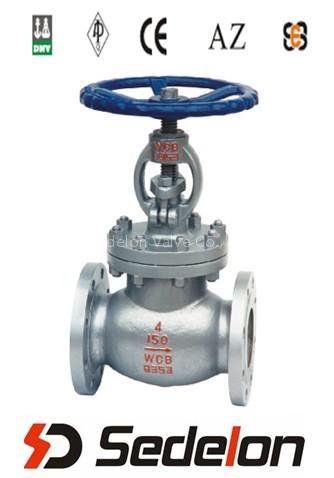

Cast Steel Globe Valve
Specifications
- Brand
- SEDELON
- Origin
- china
- Price Term
- FOB
Quick answer
Cast Steel Globe Valve is a Valves product. Key specs — Brand: SEDELON; Origin: china; Price Term: FOB.
Product Description
Class 150~1500Lbs, NPS 2~12"
Type: Through way, Y-Globe and Angle Type
OS&Y, Rising Stem, Plug Type Disc Bolted Bonnet, Threaded Seat Ring
Bolted Bonnet, Threaded or welded seat ring
Material:ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M, A351 CF3,A351 CF3M,A351 CN7M etc.
Type: Through way, Y-Globe and Angle Type
OS&Y, Rising Stem, Plug Type Disc Bolted Bonnet, Threaded Seat Ring
Bolted Bonnet, Threaded or welded seat ring
Material:ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M, A351 CF3,A351 CF3M,A351 CN7M etc.
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: to ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598
Manufacturing to NACE MR-01-75 on request
A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts
