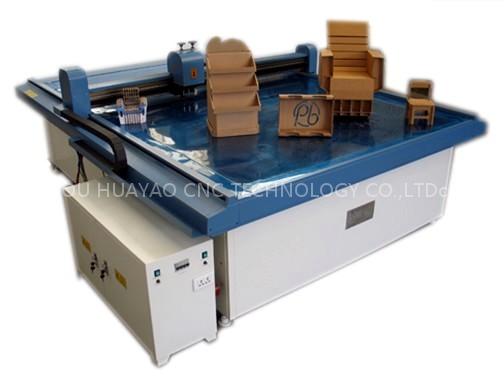

Carton Sample Flatbed Cutting Machine
Specifications
- Brand
- HUAYAO (Plotter machine)
- Origin
- china
- Price Term
- FOB
Carton Sample Flatbed Cutting Machine is a Beverage & Wine Processing Machinery product. Key specs — Brand: HUAYAO (Plotter machine); Origin: china; Price Term: FOB.
Product Description
type | DF-ZX1209 | DF-ZX1310 | DF-ZX1713 | DF-ZX2516 |
Cutting area(mm) | 1200X900 | 1300X1000 | 1700X1300 | 2500X1600 |
Floor area(mm) | 1750X1600 X1150 | 1850X1700 X1150 | 2350X2000 X1150 | 3050X2300 X1150 |
Cutting material | Cardboard, corrugated paper, PVC plasticplate, sponge and foaming plate.etc | |||
Maximum cutting thickness | 15mm | |||
Positioning precision | ≤0.025mm | |||
Fixed type | Vacuum absorption | |||
Cutting precision | ≤0.1mm | |||
Min cutting radius | 5mm | |||
Tool | Pen, knife and embossing wheel | |||
Command system | HPGL | |||
Travel speed | 40-800MM/s | |||
Power supply | 220V ±10%50HZ/380V ±10%50HZ | |||
Driving system | Servo | |||
Note : the cutting area available for customization | ||||
