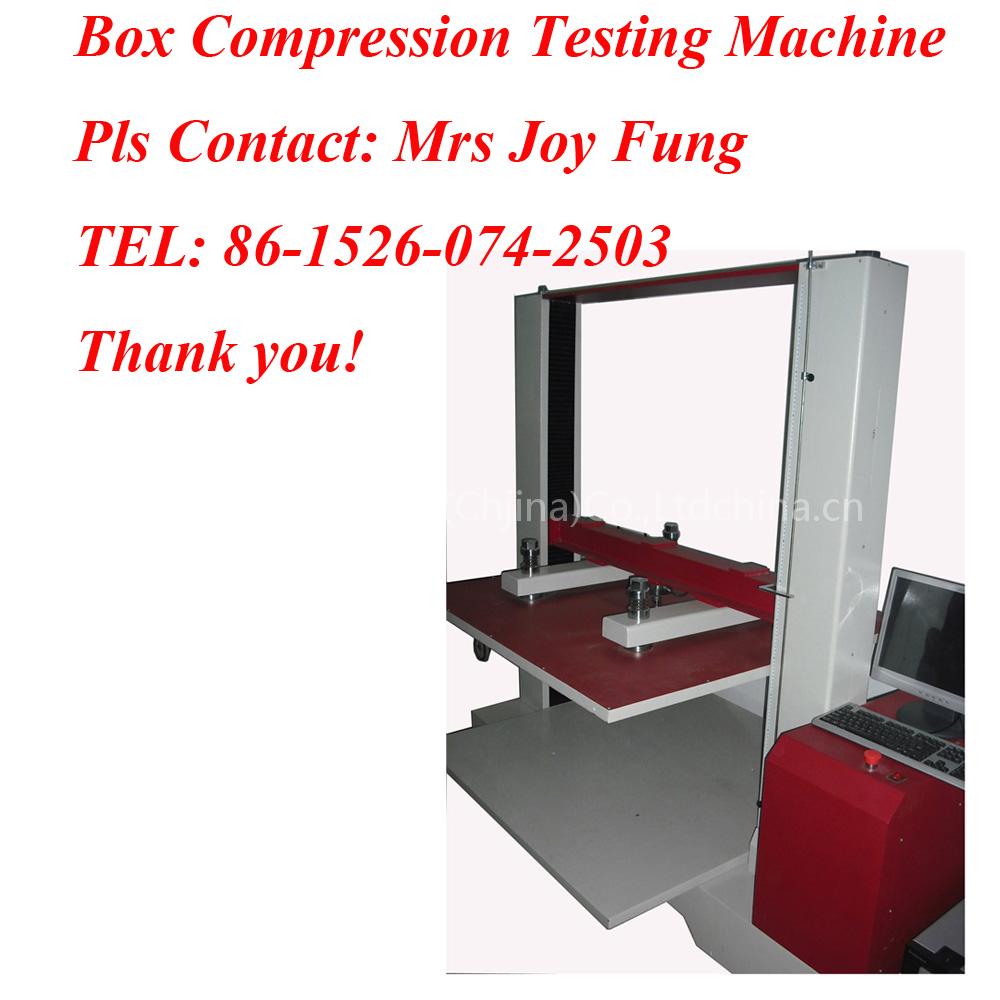

Carton Compression Tester

Box Compression Testing Machien,Carton Compression Testing Machine,Box compression tester, carton compression tester, box testerUsage This machine is used to simulate the carrying capability condition during carton transportation, such as stacking, transporting.

And get whether the carton can protect the inner product by the compression testing.Theory This machine simulate the practical stack and transport of carton and doing compression testing by loading to up and bottom platen to carton, till the squashing of it, or check the carton whether it has breakdown or not, and get the compression strength fits the requirement or not, and offer statics for the promotion of package material or practical usage.

This machine used Load Cell induction, show the resistance value on screen after the analysis of computer. Technical Parameter Capacity 2 Ton/ 5 Ton

Unit(switchable): KG, N, BA

Testing space 1200*1200*1000mm

Compression speed 10±3mm/min

Peak test printing function

Force accuracy excel±0.5%

Working power AC220±10%/800w

Display device LED display

Main board weight 1500kg

Holding pressure function full-automatic

Standards ISO2872, ISO2874, GB4857.4

Standard: ISO2872<Package--Completion,full packing case during transportation—Compression testing>,ISO2874<Package--Completion,full packing case –The stacking testing by compression machine>and GB4857.4<The basic testing of packing case Compression testing method>.Configuration: Equipt with soft program which can show the curve during testing procedure and can print it out.
