Card Encoder is a Other Safety Products product. Key specs — Origin: China (Mainland).
Product Description

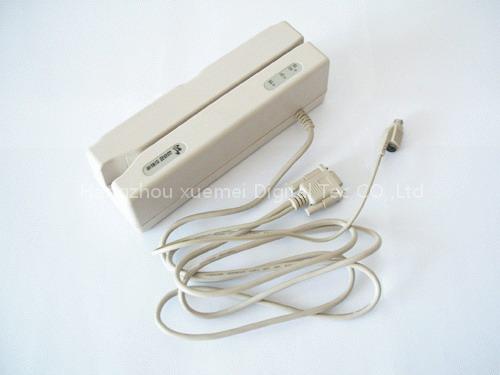

Manual Swipe Magnetic/IC Card Reader/Writer Terminal
FEATURES：
Support ISO，IBM，DIN，ANSI etc
Smart reading for card / bankbook with different magnetic record format
Compatible with magnetic card， IC card and SAM card
Excellent adaptation， good reliability，long-life magnetic head
RS232/USB
Hi co/low co
APPLICATION：
Banking system
Tax Service System
Securities System
Member Management
SPECIFICATIONS：
Card Standard：ISO 7811 / 2 ISO 7816
Track Position：ISO 1 (IATA)ISO 2 (ABA)ISO 3 (MINTS)
Recording Density：210 BPI 75 BPI 210 BPI
Recording Capacity：79Characters(7bits) 40Characters(5bits) 107Characters(5bits)
Power Supply：+12V DC ±5%
Power consumption：200mA ±15%(read) 280mA ±15%(write)
Head Function：Read only 1.5mm, Writer 3 mm
Card Thickness：Plastic 0.76 ± 0.08mm
Operation Speed：10 ~ 150cm/sec(read) 10 ~ 100cm/sec(write)
Error Rate：Lass than 0.5% (JSE Test card)
Interface：RS232C，USB
Operation Locus：Indoors only
Lifetime of Header：500,000 card passes (1 pass : one swipe)
Lifetime of IC：300,000 card passes
Lifetime of SAM：600,000 card passes
ENVIRONMENTAL REQUIREMENTS：
Operating temperature and humidity：-5°C ~ 50°C，20 ~ 90% RH
Conservation temperature and humidity：-20°C ~ 55°C，5 ~ 95% RH
