Carbonized fiber packing is a Seals product. Key specs — Origin: China.
Product Description

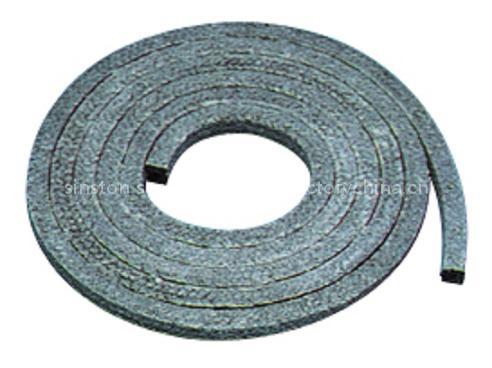

SIN202 Carbonized fiber packing Carbonized Fiber Packing is Braided from shrink-proof oxdized polyacrylonitrile fiber impregnated with PTFE dispersion containing graphite particles,silicon-oil-free,Compared to traditional carbon fiber packing,it is not brittle,can suited for high peripheral has high strength and good thermal and graphite mades the packing have excellent self-lubrication,so thes packing does not damage shafts and has long life.
SIN202I Carbonized Fiber Packing Reinforced with Nickel wire The wire reinforcement provides incerased mechanical strength,usually for static. Application:Used in weak acds and alkalis or media containing few grains of solid particles,both dynamic and static,mainly used for centrifugal pumps,plunger pumps,mixers and valves.Service Limits
T 280℃
PH 2-12
V 25m/s
Pressure Rotating 20bar
Reciprocating 100bar
Valve 200bar
D(g/cm³) 1.1-1.3
Forms of supply 2-5Kg/roll
