Carbonized Fiber Packing with Graphite

Name

Carbonized Fiber Packing with Graphite

Item

GOT-571

Product Information:

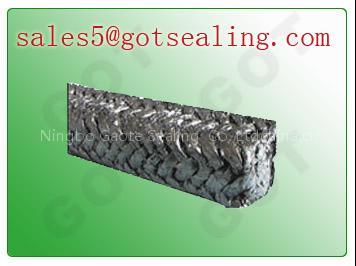

Description: It is braided by high strength carbon fiber continuous filament under softening treatment, and dipped by graphite and special lubricant, to form a dense structure, having a good self-lubrication, to effectively avoid leakage.

Product application:As the pump and valve filler under high temperature and high pressure situation, it can be singly used, and can be used together with 560 and 561 graphite ring. As the end ring, it can prevent extrusion.

When combinational used with 241 pure graphite die-pressed filler ring, it can be used in the dry running equipments, e.g. blower and air compressor.It is widely used for multiple mediums as water, steam, acid, and base, etc. in power station, refinery, boiler works.

The 572 Ni-wire reinforced-type is generally used for steam turbine, high temperature electric valve, and generally applied high temperature and high pressure valve. Service range:Temperature -50~+650 °C

Pressure Rotary pump 25 bar

Reciprocating pump 100 bar

Valve 200 bar

Rotary speed 20m/s

PH Value 1~13

Density (approximately) 1.2~1.4g/cm3

Packaging:5 or 10kg each coil, other weight on require; according to the length; Making packing
