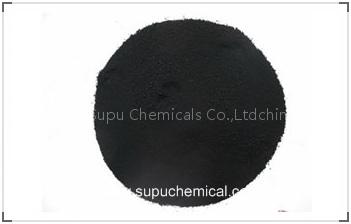

Carbon Black

Uses: Our company manufactures the black carbon series of superior-wear resisance(N220), high-wear resistance(N330), quick-press(N550), and common(N660) of dry process and wet process, maily applied to various rubber products such as tyres, rubber overshoes, cable, seal ring, tape etc. Moreover they can be applied to such relevant industries as plastic manufacture.

Carbon Black(N220):
Iodine Absorption Number (g/kg): 121 5
DBP Absorption Number (10 -5 m 3 /Kg): 114 5
DBP Absorption Number of Compressed Sample(10 -5 m 3 /Kg): 93~107
CTAB Surface Area (10 3 m 2 /Kg): 106~116
Nitrogen Surface Area (10 3 m 2 /Kg): 114~124
Tint Strength: 110~120
Heating Loss: 3.0
Ash: 0.5
Tensile Strength Map ≥ -0.8
Extension% ≥ +10
Map Modulus at 300%: -2.5 1.3

Carbon Black(N330):
Iodine Absorption Number (g/kg): 82 5
DBP Absorption Number (10 -5 m 3 /Kg): 102 5
DBP Absorption Number of Compressed Sample(10 -5 m 3 /Kg): 81~95
CTAB Surface Area (10 3 m 2 /Kg): 79~87
Nitrogen Surface Area (10 3 m 2 /Kg): 78~88
Tint Strength: 98~108
Heating Loss: 2.5
Ash: 0.5
Tensile Strength Map ≥ -1.5
Extension% ≥ -10
Map Modulus at 300%: -1.7 1.3

Carbon Black(N550):
Iodine Absorption Number (g/kg): 43 4
DBP Absorption Number (10 -5 m 3 /Kg): 121 5
DBP Absorption Number of Compressed Sample(10 -5 m 3 /Kg): 81~95
CTAB Surface Area (10 3 m 2 /Kg): 38~46
Nitrogen Surface Area (10 3 m 2 /Kg): 38~46
Heating Loss: 2.5
Ash: 0.5
Tensile Strength Map ≥ -3.5
Extension% ≥ -10
Map Modulus at 300%: -1.7 1.3

Carbon Black(N660):
Iodine Absorption Number (g/kg): 36 4
DBP Absorption Number (10 -5 m 3 /Kg): 90 5
DBP Absorption Number of Compressed Sample(10 -5 m 3 /Kg): 68~82
CTAB Surface Area (10 3 m 2 /Kg): 31~39
Nitrogen Surface Area (10 3 m 2 /Kg): 30~40
Heating Loss: 1.5
Ash: 0.5
Tensile Strength Map ≥ -3.5
Extension% ≥ +10
Map Modulus at 300%: -3.5 1.3
