Car DVD With 3G Internet

Manufacturer Specifications

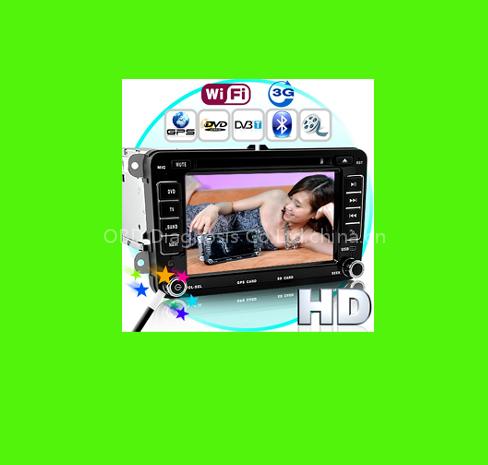

Volkswagen Edition - In Dash Car DVD With 3G Internet (WIFI, 2DIN, GPS, DVB-T)
Designed for Volkswagen Vehicles
Passat B6
Passat B7
Passat CC
Jetta 2005-2008
Golf 2003~2009
Skoda Superb
Tiguan
Touran
Primary function: 2-DIN Car DVD Player with GPS, DVB-T, WIFI, and 3G Internet Access
Main system information
Motherboard: Telechips TCC8900
Core CPU: ARM 1176JZF-S (500MHz)
GPU: ARM Mali-200 (200MHz)
Internal memory: 256MB RAM, 256MB Nand Flash
External memory: SDHC card (up to 32GB) and USB drive (up to 32GB)
Default baud rate: 9600
COM port: 2
Operating system: Windows CE 6.0

GPS information
Receiver module: MediaTek GS-92m-J
Frequency: 1.575.42 GHZ
C/A Code: 1.023 MHZ
Signal channels: 32
Tracking sensitivity: -157dBm
Position sensitivity: 10m, 2D RMS; 5m, 2D RMS , WAAS enable
Speed rate: 0.1m/s
Data update rate: 1HZ
Recapture time: Average 0.1s
Hot startup time: Average 1s
Warm startup time: Average 30s
Cold startup time: Average 36s
Maximum position altitude: 18000M
Maximum speed rate: 515m/s
Built-in antenna type: External power source porcelain antenna
Built-in antenna voltage: 3.3V±5%
Built-in antenna current: 6mA
Built-in antenna gain: 27dB
Interface: Touch screen
GUI interface: YES - 3D type
Maps: via SD card
Voice: YES
GPS menu languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, Croatian, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Slovak, Slovene, Serbian, Flemish, Bulgarian, Ukranian, Polish, Latvian, Lithuanian, Kalba, Hungarian, Dutch, Danish, Norwegian, Finnish, Czech, Greek, Russian, Thai, Malay (Actual voice and display language depends on the GPS software being used)

Internet information
3G: supports WCDMA 3G dongles and WCDMA 3G sim cards
WIFI: 802.11 b/g (included)

Display information
Screen: 7 Inch TFT LCD
Resolution: 800 x 480 RGB
Picture in picture: YES
Choose your own background pic: YES
Tilt angle: 0-90 degrees (button activated motorized tilt)
Video systems: PAL, NTSC, AUTO

Disc information
Region free (also known as region zero or no region)
CD, VCD, SVCD, DVD, MP3, WMA

DVD information
Auto play: ON/OFF
16:9, 4:3 PS, 4:3 LB
DVD menu languages: English, Chinese, German, Spanish, French, Portuguese, Latin, Italian

DVB-T information
Digital TV receiving standard: MPEG-2
Automatic and manual search
Display: 16:9, 4:3
Languages: English, German, French, Italian, Spanish, Turkish, Greek, Russian, Czech, Slovak, Vietnamese, Chinese

Audio information
Max audio output: 45W x 4
Signal-to-noise ratio (SNR): >85dB
User adjustable EQ: Bass, Treble, Balance, and Fade

AM/FM radio tuner information
AM frequency range: 522~1710KHz (Worldwide)
FM tuning range: 87.5~108.0MHz (Worldwide)
RDS system: YES

Bluetooth 2.1

Media player information
Video formats supported (up tp 1080p): H.264, MPEG 1/2, MPEG 4, VC-1, Real Video 8/9/10, H.263
Audio formats supported: MP3 / WMA / EAAC+ / AC3
Image formats supported: JPG

Connection information
IPOD input
USB input
GPS antenna input
DVB-T antenna input
Radio antenna input
RCA audio OUT x2 (front L and R)
RCA audio OUT x2 (rear L and R)
Aux-L IN
Aux-R IN
Subwoofer
Video IN
Video OUT x2
Camera IN
Left front speaker x2
Right front speaker x2
Left rear speaker x2
Right rear speaker x2

Control information
IR window
Eject
Screen angle adjust up
Screen angle adjust down
Volume decrease
Volume increase
GPS toggle
Power ON/OFF
Reset
Microphone
Main menu languages: English and Chinese
Dimensions: 175mm x 150mm x 100mm (L x W x H)
Front panel: 220mm x 20mm x 130mm (L x W x H)
Product Notes
The Volkswagen Emperor has 3G internet functionality but requires the use of a 3G dongle and your own 3G sim card. This unit has steering wheel control
Has PiP (picture in picture) functionality
This product supports the DVB-T digital TV standard, which is not used worldwide. Please check to see if DVB-T will work in your region.
This DVB-T product receives MPEG-2.
Connect your iPod to listen to your entire music collection on your car stereo system
The USB port is a great way to hook up your portable media player with your car entertainment center
Special GPS Note: This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. We can provide the GPS-enabled hardware only, not the software. We do not provide GPS installation of this Car DVD Player should only be performed or supervised by a professional. If you need further information you can refer to this - Information On Installing A Car DVD Player
Package Contents
Volkswagen Emperor car DVD
Remote control
54 Mbps 802.11b/g WIFI dongle
GPS antenna with coax connection
DVB-T antenna with coax connection
13 pin round male to 30-pin male apple connector + female full USB cable
Micro USB male to full USB female cable
Male 5mm radio antenna to female 3mm radio antenna
AV cables
Stylus
Power cables with decoder for Volkswagen
User manual - English
Frequently Asked Questions
Can I surf the net on this unit?
Accessing the internet on The Volkswagen Emperor is a truly amazing experience especially at 3G speeds!
You mentioned that the screen resolution for this unit is 800 x 480 pixels versus conventional car DVD player systems which are 480 x 234 resolution. In plain English, what does that do for me?Remember when you used to use those chunky old cathode ray tube computer monitors. That's like existing car DVD systems. Then they came out with those really thin LCD monitors where the picture was brilliant like Albert Einstein? That's the Volkswagen Emperor!
I have a 4th generation iPod, will it work with this Car DVD Player?
It should. This model was tested with multiple generation iPods and worked fine with all the original Apple models we tested.
Does this cool in-car total solution support the Greek language?
While the main menu system does not support the Greek language, the DVB-T system does however support the Greek language. What's more, if your GPS software comes in Greek then the GPS "Voice" and "Text" will be in Greek. Most popular GPS software titles come in a variety of languages. As for media playback with Greek subtitles, we suggest you download free software from the web to hardsub your Greek subtitles to your AVI files for video playback.
Is the magnetic base of the GPS antenna strong enough to be placed on a moving car?
Yes, the antenna comes with a very powerful magnet. It'll stay stuck on despite the rockiest ride.
What GPS software comes with this car navigation powerhouse? Is it Route 66?
Testing software always changes, so even we can't say in advance what software you'll be getting. It's an evaluation copy anyway so therefore purchasing your own GPS software is encouraged.
Seriously, why should I buy this over other car DVD players?
Do a google search for 3G internet car DVD players. If you happen to find one (good luck), compare its price with The one. We're sure you'll see why the Volkswagen Emperor is a winner hands down.
