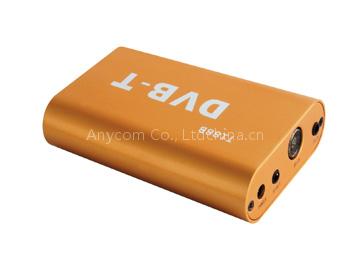

Car DVB-T receivers

1. Receiving frequency: VHF-H (174MHz~230MHz), UHF (470MHz~862MHz) 2. Bandwidth: 8MHz 3. Input level: -78dBm~-20dBm 4. Input resistance: 75Ω 5. Demodulator 1). Wave: CODFM 2). Demodulation: QPSK, QAM16. QAM64 3). Mode: 2K, 8K 4). Protection gap: 1/4, 1/8, 1/16, 1/32 5). Code rate: 1/2, 2/3, 2/4, 5/6, 7/8 6). Video Decoding 7).

Standard: ISO/IEC 13818-2 MPEG-2 MP-ML 8). Video format: 4:3, 16:9 6. Resolution: max. 720x576 7. Demultiplexer 1). Standard: ISP/IEC 13818-1 2). Max. input code current: 60Mbps (serial connection) /7.5MBps (parallel connection) 8. Audio Decoding Standard: ISO/IEC 13818-3 9. Channel mode: left, right and stereo 10.

Sampling frequency: 32KHz, 44.1KHz, 48KHz 11. Video Output Output system: 720 x 480 (NTSC) / 720 x 576 (PAL) Output level: 1.0Vpp Output resistance: 75Ω 12. Support multi language: Chinese, English, French, German, Italian, Spaish, Swedish, Portuguese, Denish and so on.
