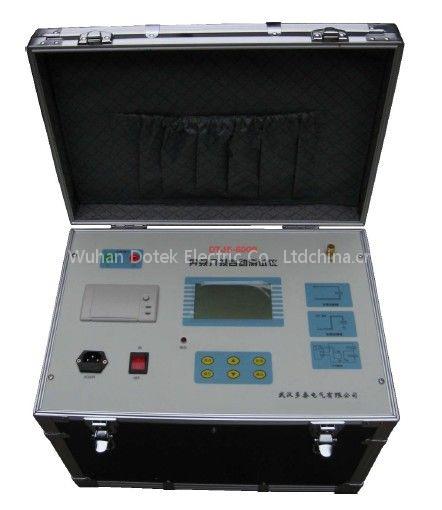

Capacitance and Dissipation Factor Test Set

DescriptionDTJS-6009 is designed to measure the Capacitance and Dissipation Factor (tgδ ) of dielectric and electric equipments.

It can test grounded equipments, ungrounded equipments, and completely-sealed CVT (Capacitive Voltage Transformer).The instrument generates testing High-voltage by itself, and the frequency is 45Hz and 55Hz to avoid electromagnetic interference from power frequency, so as to assure the measuring accuracy.

FeaturesNon-power-frequency Testing voltage, Interference suppression circuit, to assure measuring Accuracy.Testing voltage is Program-controlled.Auto balance measuring bridge and calculate dissipation factor to speed and simplify test process.Large LCD screen.Menu operation.Built-in Printer.Auto identify earthing to ensure safety.Multi-protection of short-circuit, over-heat, over-voltage, over-current, voltage-fluctuation.

Specifications (English version available)Testing High-Voltage:Power: 1kVARange: 1~10kV, step 0.1kVFrequency: 45Hz, 55HzCurrent: max 140mAAccuracy: 5%Driving Voltage for CVT:Range: 0~30VFrequency: 45Hz, 55HzCurrent: max 15AMeasuring range: tgδ : no limit, Cx: 15pF ~ 100nFResolution: tgδ : 0.001%, Cx: 0.1pFMeasuring Accuracy:Δ tgδ : Reading× 1.0%+0.04%, Δ Cx: Reading× 1.0%+1.0pFPower supply: AC220V± 10%, 50HzOperating conditions: -5~40° C, RH< 80%Dimension: 47× 32× 39cm (without test leads)Weight: appr.

30kg (without test leads)Test leads length: 8m, 8m, 5m
