Cable Stripper and Cable Knife

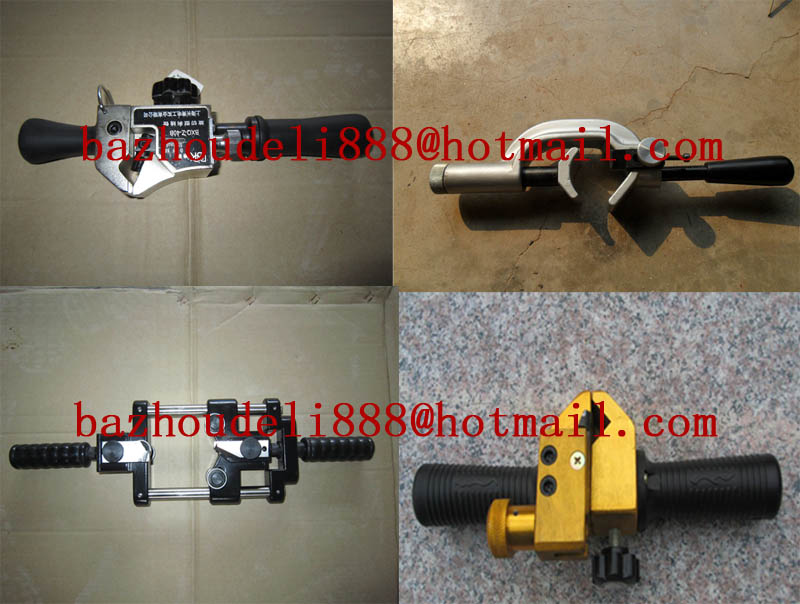

Cable Stripper and Cable Knife BX-40 Cable Knife/Cable stripper Application: stripper for the insulation layer of the cable between F 20-40mm stripping thickness can be adjusted the knives cannot touch the metal cable cores when stripping knives can be sharpened or replaced. Model Dia of Insulated Conductor wire(mm) Size(mm) Weight(Kg) BX-40 ¢20-¢40 245*87*55mm 0.8

KBX-45 Cable Knife/Cable stripper Application:stripper for the end and the middle of the conducting wire and cable between F 10-40mm stripping thickness can be adjusted the knives cannot touch the metal cable cores when stripping knives can be sharpened or replaced. Model Dia of Cable(mm) Size(mm) Weight(Kg) KBX-45 ≤40 245*80*90mm 1.4

BX-90 Cable Knife/Cable stripper Application: stripper for the end and the middle of the conducting wire and cable between F 40-90mm stripping thickness can be adjusted the knives cannot touch the metal cable cores when stripping knives can be sharpened or replaced. Model Dia of Cable(mm) Size(mm) Weight(Kg) BX-90 ¢40-¢90 510*150*90mm 2.7

BX-65 Cable Knife For stripper Application:stripper for the end insulation layer of the cable between F 15-65mm stripping thickness can be adjusted ,he knives cannot touch the metal cable cores when stripping knives can be sharpened or replaced. Model Dia of Insulated wire(mm) Size(mm) Weight(Kg) JB-4.5 ¢15-¢65 290*120*75mm 1.4

JB-4.5 Cable Knife/Cable stripper Application: stripper for the insulation layer,thickness less than F32mm,for stripping the main insulation layer of the power cable less than 4.5mm,Stripping thickness can be adjusted.The knives cannot touch the metal cable cores when stripping,Knives can be sharpened or replaced.

Model Dia of Insulated Conductor wire(mm) Thickness Of Insulating Barrier(mm) Weight(Kg) JB-4.5 ¢14-¢32 ≤4.5 0.83

GOB-10/12 Cable Knife/Cable stripper

Application: Stripper for high voltage cable,used to divest the insulating barrier on high voltage cable (suitable for end). Model Dia of Insulated wire(mm) Thickness Of Insulating Barrier(mm) Weight(Kg) GOB-10 ¢15-¢30 ≤10 0.83 GOB-12 ¢30-¢50 ≤12 1.05
