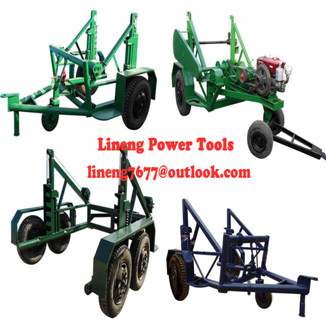

Cable Reel Trailer,Cable Carrier

Specifications

Drum Trailer,Cable Winch,Cable Drum Trailer,cable trailer,cable drum table,cable drum carriage

Cable Reel Puller, Cable Reel Trailer,Reel Cable Trailer

1. ISO9001 certificate

2.Uses in the large-scale reel laying

3.many kinds of specification

Cable drum trailers Useage : This strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient. Uses in loading and unloading, the transportation, the large-scale reel cable laying .

Mechanical cable drum trailer Application: used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.

Please contact us if you have any requirement, and we can make products with special specification as your requirements.

Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dimension of main body

DHTC-3 3T ≤φ2400mm ≤1400mm φ76mm 3800mm×2300mm×2200mm

DHTC-5 5T ≤φ2800mm ≤1600mm φ90mm 4000mm×2600mm×2500mm

DHTC-8 8T ≤φ3400mm ≤1800mm φ120mm 4300mm×3200mm×2700mm

DHT-10 10T ≤φ3600mm ≤2000mm φ150mm 4600mm×3800mm×2900mm

Hydraulic cable drum trailer Application: used for cable drum hauling and cable pulling-pushing. Equipped with hydraulic hand device, can lift cable drum easily. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.

Please contact us is you have any requirement, and we can make products with special specification as your requirements.

Product No. Rated load Applicable drum diameter Applicable drum width Axle bar diameter Dimension of main body

DH3050-3 3T ≤φ2400mm ≤1400mm φ76mm 3800mm×2300mm×2000mm

DH3050-5 5T ≤φ2800mm ≤1600mm φ90mm 4000mm×2600mm×2200mm

DH3050-8 8T ≤φ3400mm ≤1800mm φ120mm 4300mm×3200mm×2400mm

D3050-10 10T ≤φ3600mm ≤2000mm φ150mm 4600mm×3800mm×2600mm
